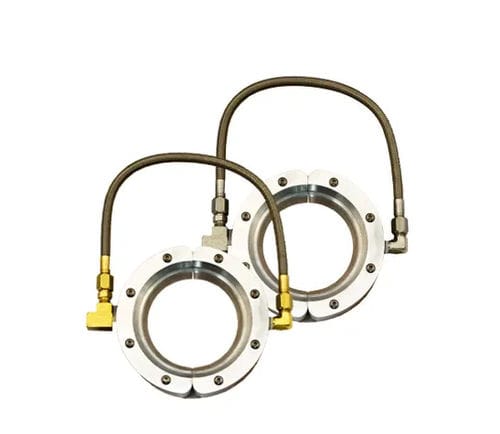

Stainless steel air wipe Model 2402SS Super

coolingdryingcleaning

Description The Super Air Wipe™ delivers a uniform 360° airstream for blowoff, drying, cleaning and cooling of pipe, cable, extruded shapes, hose and wire. The split (two‑piece) design clamps around material in-line, eliminating the need to thread parts through the tool. Models up to 4" (102 mm) include a stainless steel braided hose that feeds both halves from one compressed air inlet. Available in I.D. sizes from 3/8" to 11" (10–279 mm) and constructed in aircraft‑grade aluminum or Type 303 stainless steel; custom sizes and materials available.

Applications

• Drying after washing, cleaning, plating or coating
• Blowoff of dust and contaminants
• Cooling hot extruded shapes
• Uniform wiping of surfaces
• Drying extruded profiles, rod and medical tubing
• Eliminating solution carryover to avoid cross contamination
• Blowing excess water from automotive door gaskets
• Removing excess coatings, water and oil
• Drying tube, hose, wire and fiber optics
• Minimizing solution loss due to drag‑out
• Cleaning paint gun tips
• Drying screen‑printed or ink‑jetted surfaces
• Cleaning strips and ribbon

Advantages

• Quiet operation
• Low air consumption
• Uniform 360° airflow across the entire diameter
• Stainless steel hardware resists corrosion
• High temperature ratings (Aluminum to 400°F / 204°C; Stainless to 800°F / 427°C)
• No electricity and no moving parts
• Non‑contact — no wiper blade
• Split design — compact, rugged, easy to install
• Lightweight, low profile with tapped mounting holes
• Variable force and flow via pressure regulation
• Meets OSHA dead‑end pressure and noise requirements

Materials Aluminum — aircraft‑grade aluminum with stainless steel shim; suitable for general purpose applications where corrosion is not a factor; stainless steel screws for damp locations; rated to 400°F (204°C). Type 303 Stainless Steel — common stainless grade providing improved corrosion resistance and strength for harsher environments; rated to 800°F (427°C).

Accessories

• Super Air Wipe Shim Sets — shipped with a .002" (0.05 mm) stainless steel shim installed; shim sets include two .002" shims that can be stacked to increase gap, force and flow (increasing gap raises velocity and force with slightly higher air consumption and noise)
• Kits — include Super Air Wipe, shim set, filter separator and pressure regulator sized for proper flow

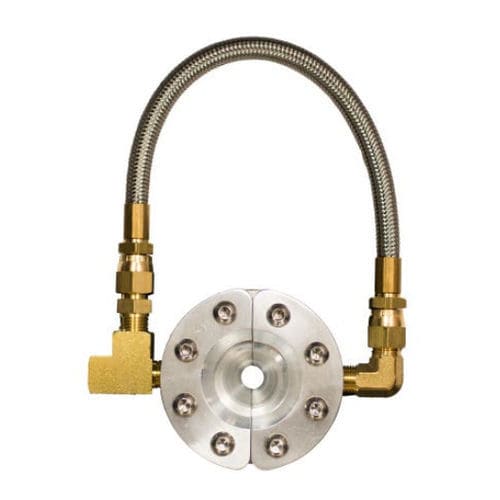

Available Models / Part Numbers (I.D. / Aluminum Only / Aluminum Kit / Stainless Only / Stainless Kit / Shim Set) 3/8" (10 mm) | 2399 | 2449 | N/A | N/A | N/A
1/2" (13 mm) | 2400 | 2450 | 2400SS | 2450SS | 2350SS
1" (25 mm) | 2401 | 2451 | 2401SS | 2451SS | 2351SS
2" (51 mm) | 2402 | 2452 | 2402SS | 2452SS | 2352SS
3" (76 mm) | 2403 | 2453 | 2403SS | 2453SS | 2353SS
4" (102 mm) | 2404 | 2454 | 2404SS | 2454SS | 2354SS
5" (127 mm) | 2405 | 2455 | N/A | N/A | 2355SS
6" (152 mm) | 2406 | 2456 | N/A | N/A | 2356SS
7" (178 mm) | 2407 | 2457 | N/A | N/A | 2357SS
9" (229 mm) | 2409 | 2459 | N/A | N/A | 2359SS
11" (279 mm) | 2411 | 2461 | N/A | N/A | 2361SS

Notes on compressed air and installation Each half has compressed air inlets. Sizes up to 4" include a stainless steel braided hose to couple the halves from one inlet. Sizes 9" and larger have two inlets per half and require appropriate supply to maintain uniform airflow. Use clean, filtered air; kits include an automatic drain filter separator with a 5 micron element sized for flow. Mounting may be supported by the compressed air supply pipe or via tapped holes (1/4‑20) on the downstream side. A pressure regulator on the air supply provides infinite control of flow, force and consumption; kits include a properly sized regulator.

Technical specifications

• Product: Super Air Wipe™ (split design, 360° wiping airstream)
• Materials: Aluminum (aircraft grade) or Type 303 Stainless Steel; stainless steel shims and screws; stainless steel braided hose included up to 4"
• Available I.D.: 3/8", 1/2", 1", 2", 3", 4", 5", 6", 7", 9" and 11" (10, 13, 25, 51, 76, 102, 127, 152, 178, 229 and 279 mm); special diameters available
• Default shim/gap: .002" (0.05 mm) stainless steel shim installed; shim sets include two .002" shims
• Temperature rating: Aluminum to 400°F (204°C); Stainless Steel to 800°F (427°C)
• Mounting: supported by air supply pipe or tapped holes (1/4‑20) downstream
• Filtration: clean air recommended; kits include 5 micron filter separator
• Regulation: pressure regulator recommended; included with kits
• Typical performance at 80 PSIG / 5.5 BAR — air consumption (SCFM), flow (SLPM) and sound level (dBA): 2399: 11.1 SCFM, 314 SLPM, 82 dBA; 2400/2400SS: 13.9 SCFM, 394 SLPM, 80 dBA; 2401/2401SS: 19.1 SCFM, 541 SLPM, 80 dBA; 2402/2402SS: 29.5 SCFM, 835 SLPM, 81 dBA; 2403/2403SS: 39.8 SCFM, 1,127 SLPM, 82 dBA; 2404/2404SS: 50.2 SCFM, 1,422 SLPM, 82 dBA; 2405: 60.6 SCFM, 1,716 SLPM, 82 dBA; 2406: 71.0 SCFM, 2,010 SLPM, 84 dBA; 2407: 81.3 SCFM, 2,302 SLPM, 85 dBA; 2409: 102.1 SCFM, 2,891 SLPM, 87 dBA; 2411: 122.8 SCFM, 3,477 SLPM, 89 dBA
