Air wipe shim set Model 2352SS Super

Description
On the Super Air Wipe™, compressed air exhausts through an adjustable gap set by a shim positioned between the cap and the body. A .002" (0.05 mm) stainless steel shim is installed for most applications. Adding shims increases the gap opening, producing higher air velocity and greater impact force while slightly increasing air consumption and noise. Super Air Wipe shim sets include two .002" (0.05 mm) stainless steel shims that can be stacked. Shim sets are supplied with kits or available separately.

Product Types

• Super Air Wipe Only

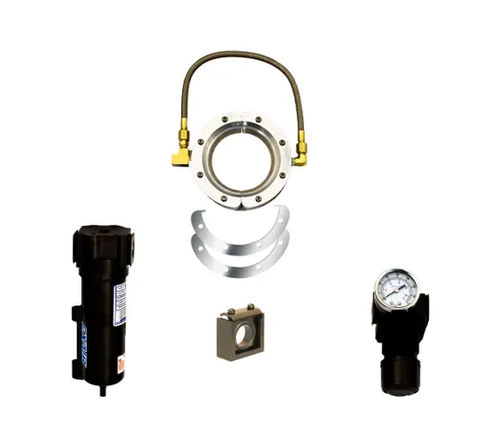

• Super Air Wipe Kits - includes a Super Air Wipe, shim set, filter separator and pressure regulator (with coupler)
• Super Air Wipe Shim Sets - include (2) .002" (0.05 mm) thick stainless steel shims

Model Numbers by I.D.
I.D. | Aluminum Super Air Wipe Only | Aluminum Super Air Wipe Kit | Stainless Steel Super Air Wipe Only | Stainless Steel Super Air Wipe Kit | Super Air Wipe Shim Set
3/8" (10mm) | 2399 | 2449 | N/A | N/A | N/A
1/2" (13mm) | 2400 | 2450 | 2400SS | 2450SS | 2350SS
1" (25mm) | 2401 | 2451 | 2401SS | 2451SS | 2351SS
2" (51mm) | 2402 | 2452 | 2402SS | 2452SS | 2352SS
3" (76mm) | 2403 | 2453 | 2403SS | 2453SS | 2353SS
4" (102mm) | 2404 | 2454 | 2404SS | 2454SS | 2354SS
5" (127mm) | 2405 | 2455 | N/A | N/A | 2355SS
6" (152mm) | 2406 | 2456 | N/A | N/A | 2356SS
7" (178mm) | 2407 | 2457 | N/A | N/A | 2357SS
9" (229mm) | 2409 | 2459 | N/A | N/A | 2359SS
11" (279mm) | 2411 | 2461 | N/A | N/A | 2361SS

Caractéristiques / Spécifications techniques

• Shim thickness: .002" (0.05 mm) stainless steel (installed)
• Shim set includes two .002" (0.05 mm) stainless steel shims that can be stacked to increase gap opening
• Adding shims increases gap, resulting in higher velocity and greater force; also increases air consumption and noise slightly
• Shim sets shipped with kits or available separately
• Available I.D. sizes and corresponding part numbers shown in the table above
• Model / SKU shown on page for this product variation: P2351SS
