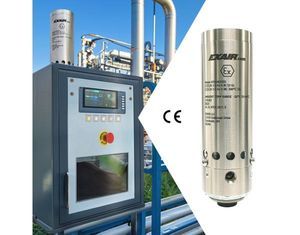

Side-mount electrical cabinet air conditioner ATEX4730

compactfor hazardous locationsindustrial

Overview
Aluminum ATEX Cabinet Cooler® Systems for continuous operation are engineered and certified to cool purged electrical enclosures in ATEX Zones 2 and 22. These systems use vortex-tube technology to generate cold air without moving parts and include a water-and-dirt filter separator and a cold air distribution kit. Continuous operation models provide constant cooling plus a positive purge while preserving enclosure integrity via a low-pressure relief valve. All units are CE compliant and maintain NEMA 4 (IP66) ratings when mounted properly.

Applications

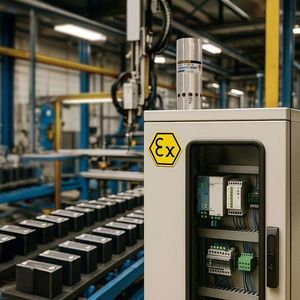

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Laser housings
• Electronic scales

Advantages

• Certified for ATEX Zones 2 and 22
• Compact, low-cost installation through standard electrical knockout
• Cooling capacities up to 5,600 Btu/hr (1,641 Watts)
• Quiet operation with sound levels from 73 to 85 dBA depending on model
• No moving parts — minimal maintenance
• Maintains enclosure NEMA 4 (IP66) rating via low-pressure relief valve
• Stabilizes temperature and relative humidity inside enclosure
• Includes 5 micron automatic drain water-and-dirt filter
• Provides washdown protection and reduces contamination

Models (Continuous Operation)
Model — Btu/hr. (Watts)
ATEX4715 — 1,000 (293)
ATEX4725 — 1,700 (498)
ATEX4730 — 2,000 (586)
ATEX4740 — 2,800 (821)
ATEX4750 — 3,400 (997)
ATEX4760 — 4,000 (1,171)
ATEX4770 — 4,800 (1,406)
ATEX4780 — 5,600 (1,641)

Performance (Continuous Operation — Cooling Capacity at 100 PSIG / 6.9 BAR)
Model — Btu/hr. — Watts — Sound Level (dBA)
ATEX4715 — 1,000 — 293 — 73
ATEX4725 — 1,700 — 498 — 80
ATEX4730 — 2,000 — 586 — 80
ATEX4740 — 2,800 — 821 — 82
ATEX4750 — 3,400 — 997 — 84
ATEX4760 — 4,000 — 1,171 — 84
ATEX4770 — 4,800 — 1,406 — 84
ATEX4780 — 5,600 — 1,641 — 85

How It Works
Compressed air enters the vortex-tube-powered Cabinet Cooler® and splits into a hot stream and a cold stream. The hot air is muffled and vented to atmosphere; the cold air is directed into the enclosure via the cold air distribution kit. This process creates cooling and maintains a positive purge so outside air does not enter the control panel. Continuous models can produce air up to 54°F (30°C) below supply temperature and under some conditions up to 16°F (-9°C) below inlet temperature.

Other Considerations

• Filtration: 5 micron automatic drain water-and-dirt filter included; use a coalescing filter when oil is present in the compressed air.

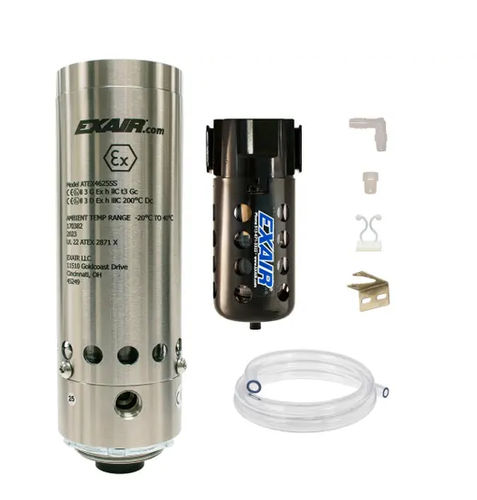

• Cold Air Distribution Kit: Flexible vinyl tubing, connectors and adhesive clips included to target circulation or hot spots.
• Humidity: Continuous operation stabilizes internal relative humidity (~45%) and prevents condensation when enclosure is sealed.
• Inlet Air Temperature: Rated cooling assumes 100 PSIG (6.9 BAR); elevated inlet temperature or reduced pressure lowers capacity.
• Mounting: Standard knockout mount; side-mount kits available. Proper installation preserves NEMA 4/4X (IP66) rating.
• Control Options: Continuous operation includes cooler, filter separator and distribution kit; thermostatic versions include ATEX-approved solenoid and thermostat (factory set at 95°F / 35°C).

ATEX Cabinet Coolers

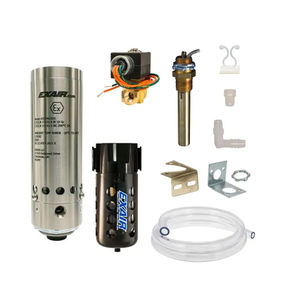

ATEX Cabinet Cooler® Systems are certified for purged electrical enclosures in Zones 2 and 22. Vortex tube technology provides up to 5,600 Btu/hr with no moving parts, offering a low-maintenance cooling and purge solution. Units are available in aluminum (standard) and optional Type 303 or 316 stainless steel for corrosive environments.

Technical specifications

• Denomination: Aluminum ATEX Cabinet Cooler® Systems (Continuous Operation series)
• SKU example: PATEX4710 (configurable)
• NEMA rating: NEMA 4 (IP66) — maintained by low-pressure relief valve
• ATEX approval: Zones 2 and 22
• Cooling capacity: 1,000 to 5,600 Btu/hr (293 to 1,641 Watts) at 100 PSIG (6.9 BAR)
• Cold air production: Vortex tube technology; ~54°F (30°C) temperature drop from supply at rated conditions; can reach 16°F (-9°C) below inlet in some cases
• Sound levels: 73–85 dBA depending on model
• Filtration: 5 micron automatic drain water-and-dirt filter included
• Materials: Aluminum standard; optional Type 303 or 316 stainless steel
• Control: Continuous operation or thermostatic control (thermostat factory set at 95°F / 35°C)
• Cold air distribution: Kit included
• Warranty: Five year manufacturer warranty (manufacturer stated)
• Intended use: For purged and pressurized control systems; not a substitute for a purged controller
