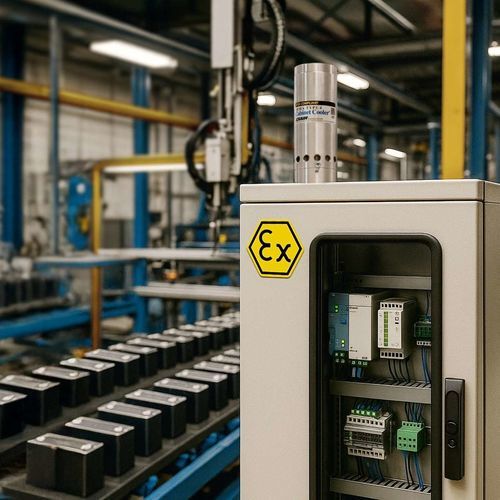

Side-mount electrical cabinet air conditioner Model ATEX4840SS

verticalcompactfor computer rooms

Overview
Thermostat-controlled stainless steel ATEX Cabinet Cooler® Systems are ATEX-certified for use on purged electrical enclosures in Zone 2 and Zone 22 areas. Using vortex tube technology with no moving parts, these CE-compliant systems include a water-dirt filter separator, cold air distribution kit and a low-pressure relief valve that seals when the cooler is idle to preserve NEMA 4X enclosure integrity. The thermostat activates the cooler only when enclosure temperature approaches the setpoint (factory set to 95°F / 35°C), reducing compressed air consumption. Units are available in cooling capacities from 1,000 to 5,600 Btu/hr.

Applications

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Laser housings
• Electronic scales

Advantages

• ATEX-approved for Zone 2 and 22
• Compact and cost-effective
• Cooling capacities up to 5,600 Btu/hr (1,641 Watts)
• Quiet operation
• Quick installation in standard electrical knockout
• Maintains NEMA 4X (IP66) integrity: dust-tight, oil-tight, splash resistant, indoor/outdoor, corrosion resistant
• Stabilizes enclosure temperature and humidity
• No CFCs; no moving parts—virtually maintenance-free
• Eliminates internal fans and filters
• Provides washdown protection
• Five-year "Built To Last" warranty

Included components

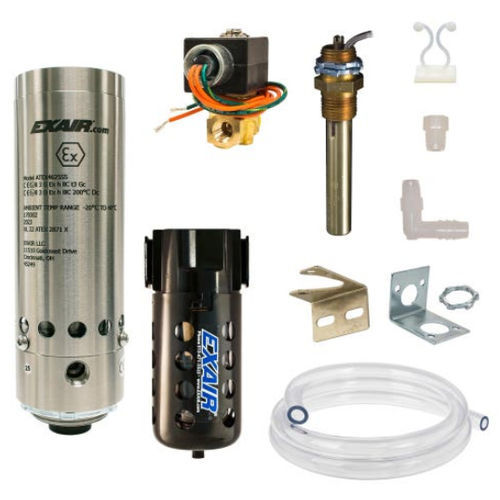

Thermostat-controlled systems include the Cabinet Cooler®, ATEX-approved solenoid valve, adjustable thermostat (factory set to 95°F / 35°C), 5-micron automatic-drain water-dirt filter separator, and cold air distribution kit to direct airflow for circulation or hot-spot cooling.

Important notes
These ATEX Cabinet Cooler® Systems are intended for use on purged and pressurized enclosures but are not standalone purged and pressurized control systems. They must be used with a properly purged and pressurized enclosure. Elevated inlet air temperature or reduced supply pressure will reduce cooling capacity. Continuous-operation models typically stabilize enclosure relative humidity at about 45% if the enclosure is sealed to prevent condensation.

Models - ATEX Cabinet Cooler® Systems, Thermostat Control, Type 303 Stainless Steel
ATEX4815SS | 1,000 (293)
ATEX4825SS | 1,700 (498)
ATEX4830SS | 2,000 (586)
ATEX4840SS | 2,800 (821)
ATEX4850SS | 3,400 (997)
ATEX4860SS | 4,000 (1,008)
ATEX4870SS | 4,800 (1,210)
ATEX4880SS | 5,600 (1,641)

Models - ATEX Cabinet Cooler® Systems, Thermostat Control, Type 316 Stainless Steel
ATEX4815SS-316 | 1,000 (293)
ATEX4825SS-316 | 1,700 (498)
ATEX4830SS-316 | 2,000 (586)
ATEX4840SS-316 | 2,800 (821)
ATEX4850SS-316 | 3,400 (997)
ATEX4860SS-316 | 4,000 (1,008)
ATEX4870SS-316 | 4,800 (1,210)
ATEX4880SS-316 | 5,600 (1,641)

240V and 24VDC variants
Models with the -240 suffix denote 240VAC thermostat-control variants; models with the -24VDC suffix denote 24VDC thermostat-control variants. Capacities match the listings above (1,000 to 5,600 Btu/hr).

Performance summary (thermostat control, Type 303 SS)
ATEX4815SS group | 1,000 Btu/hr | 293 Watts | 73 dBA at 100 PSIG
ATEX4825SS group | 1,700 Btu/hr | 498 Watts | 80 dBA at 100 PSIG
ATEX4830SS group | 2,000 Btu/hr | 586 Watts | 80 dBA at 100 PSIG
ATEX4840SS group | 2,800 Btu/hr | 821 Watts | 82 dBA at 100 PSIG
ATEX4850SS group | 3,400 Btu/hr | 997 Watts | 84 dBA at 100 PSIG
ATEX4860SS group | 4,000 Btu/hr | 1,171 Watts | 84 dBA at 100 PSIG
ATEX4870SS group | 4,800 Btu/hr | 1,406 Watts | 84 dBA at 100 PSIG
ATEX4880SS group | 5,600 Btu/hr | 1,641 Watts | 85 dBA at 100 PSIG
Cooling capacities specified at 100 PSIG (6.9 BAR) supply pressure.

Accessories and options

• Cold Air Distribution Kit — tubing, fittings and clips to direct cold air to circulate or to hot spots
• Side Mount Kits — for vertical installation where top/side access is limited; models for small and large enclosures; maintain NEMA rating when installed vertically
• Optional filtration — coalescing oil-removal filter recommended if oil is present in compressed air supply

Technical specifications

• Brand: EXAIR
• Commercial name: ATEX Cabinet Cooler® Systems (stainless steel thermostat-controlled variant)
• SKU shown on page: PATEX4810SS
• Cooling capacity range: 1,000 to 5,600 Btu/hr (293 to 1,641 Watts)
• Materials: Type 303 and Type 316 Stainless Steel options
• Thermostat: adjustable, factory set to 95°F (35°C); rated 24VAC–240VAC, 50/60Hz and 24VDC; typical hold ±2°F (±1°C)
• Control options: thermostat-controlled (includes solenoid valve) or continuous-operation models
• Supply pressure reference: capacities measured at 100 PSIG (6.9 BAR); typical temperature drop ~54°F (30°C) from supply at 80 PSIG (5.5 BAR)
• Filtration: 5-micron automatic-drain water and dirt filter separator included
• Enclosure protection: low-pressure relief valve seals when cooler is off to maintain NEMA 4X integrity (dust-tight, oil-tight, splash resistant, indoor/outdoor, corrosion resistant)
• Zones approved: ATEX Zone 2 and Zone 22
• Sound levels: approx. 73–85 dBA depending on model
• CE compliant; UL/CSA recognized components for thermostat and solenoid where indicated
• No refrigerant, no moving parts; maintenance-free operation
• Typical mounting: standard electrical knockout (1-1/2 NPS); Side Mount Kits require vertical installation
