Side-mount electrical cabinet air conditioner ATEX4730SS

compactfor computer roomsindustrial

Overview

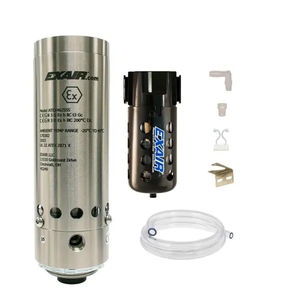

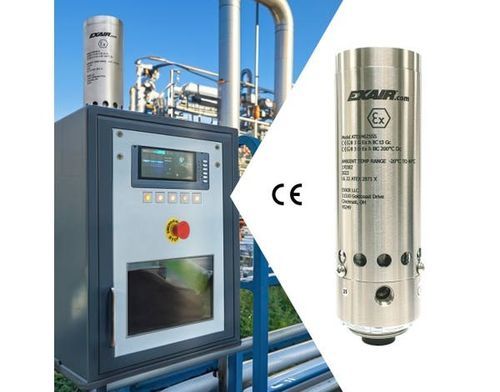

Stainless steel continuous-operation ATEX Cabinet Cooler® Systems are engineered and ATEX‑approved for use on purged electrical enclosures in Zone 2 and Zone 22 hazardous areas. These systems use vortex-tube technology to convert compressed air into cold air, delivering a low-maintenance cooling and purge solution with no moving parts. Continuous-operation units provide constant cooling and a continuous positive purge. Systems include a 5‑micron water‑and‑dirt filter separator and a cold air distribution kit to direct airflow to circulate or target hot spots. A low‑pressure relief valve closes when the cooler is off to preserve NEMA 4X (IP66) enclosure integrity.

Applications

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Laser housings
• Electronic scales

Advantages

• Certified for ATEX Zone 2 and Zone 22
• Compact, low cost solution
• Cooling capacities up to 5,600 Btu/hr (1,641 Watts)
• Quiet operation
• Quick installation through a standard electrical knockout
• Maintains NEMA 4X integrity (IP66)
• Stabilizes enclosure temperature and humidity
• No CFCs
• No moving parts — maintenance free
• Eliminates internal fans and filters
• Provides washdown protection and corrosion resistance (stainless steel models)

Models (Type 303 Stainless Steel, Continuous Operation)
Model — Btu/hr. (Watts)
ATEX4715SS — 1,000 (293)
ATEX4725SS — 1,700 (498)
ATEX4730SS — 2,000 (586)
ATEX4740SS — 2,800 (821)
ATEX4750SS — 3,400 (997)
ATEX4760SS — 4,000 (1,171)
ATEX4770SS — 4,800 (1,406)
ATEX4780SS — 5,600 (1,641)

Models (Type 316 Stainless Steel, Continuous Operation)
Model — Btu/hr. (Watts)
ATEX4715SS-316 — 1,000 (293)
ATEX4725SS-316 — 1,700 (498)
ATEX4730SS-316 — 2,000 (586)
ATEX4740SS-316 — 2,800 (821)
ATEX4750SS-316 — 3,400 (997)
ATEX4760SS-316 — 4,000 (1,171)
ATEX4770SS-316 — 4,800 (1,406)
ATEX4780SS-316 — 5,600 (1,641)

Performance (Type 303/316 Stainless Steel, Continuous Operation)
Model — Btu/hr. — Watts — Sound Level dBA
ATEX4715SS / ATEX4715SS-316 — 1,000 — 293 — 73 dBA
ATEX4725SS / ATEX4725SS-316 — 1,700 — 498 — 80 dBA
ATEX4730SS / ATEX4730SS-316 — 2,000 — 586 — 80 dBA
ATEX4740SS / ATEX4740SS-316 — 2,800 — 821 — 82 dBA
ATEX4750SS / ATEX4750SS-316 — 3,400 — 997 — 84 dBA
ATEX4760SS / ATEX4760SS-316 — 4,000 — 1,171 — 84 dBA
ATEX4770SS / ATEX4770SS-316 — 4,800 — 1,406 — 84 dBA
ATEX4780SS / ATEX4780SS-316 — 5,600 — 1,641 — 85 dBA

How it works
Compressed air enters the vortex‑tube-powered Cabinet Cooler and splits into a cold stream and a hot stream. The cold air is routed into the control enclosure via the cold air distribution kit while the hot air is exhausted externally. The system cools and purges the enclosure with clean, cooled air without allowing ambient air to enter the panel.

Other considerations

• Filtration: Systems include a 5‑micron automatic‑drain water‑and‑dirt filter separator to prevent condensate and dirt from entering the enclosure. For oil contamination, add a coalescing filter.
• Cold Air Distribution Kit: Contains flexible tubing, connectors and adhesive clips to direct cold air for circulation or to hot spots.
• Humidity: Continuous units stabilize internal relative humidity at approximately 45% if the enclosure is sealed to prevent condensation.
• Inlet Air Temperature & Pressure: Typical temperature drop is ~54°F (30°C) from supply air at 100 PSIG (6.9 BAR). Higher inlet temperatures or lower supply pressures reduce cooling capacity.
• Mounting: Mounts through a standard electrical knockout (1‑1/2 NPS). Side mount kits available when top mounting is not possible; NEMA 4/4X integrity is maintained.
• Thermostat & Solenoid Option: Thermostatic models include an ATEX‑certified solenoid valve and thermostat for efficient control; continuous models include the cooler, filter separator and cold air distribution kit.

Safety & Use
ATEX Cabinet Cooler® Systems are designed and ATEX‑approved for use on purged, pressurized control enclosures in Zone 2 and Zone 22. They must be used as part of a properly purged and pressurized system and are not intended to serve as the sole purged controller.

Technical specifications

• Brand: EXAIR
• Series: ATEX Cabinet Cooler® Systems (Stainless Steel, Continuous Operation)
• Cooling capacities: 1,000 to 5,600 Btu/hr (293 to 1,641 Watts)
• Rated ATEX zones: Zone 2 and Zone 22
• Materials: Type 303 SS and Type 316 SS options
• Includes: 5‑micron automatic‑drain filter separator and cold air distribution kit (continuous models)
• No moving parts; maintenance‑free
• NEMA rating maintained (NEMA 4X / IP66) via low‑pressure relief valve
• Sound levels: ~73–85 dBA depending on model and capacity
• Performance basis: Cooling capacity specified at 100 PSIG (6.9 BAR) supply pressure
• Thermostat‑controlled model voltages available: 110 VAC, 240 VAC and 24 VDC (thermostatic versions)
• Typical warranty: five year “Built To Last” warranty (manufacturer statement)
• Typical SKU example on page: PATEX4710SS
