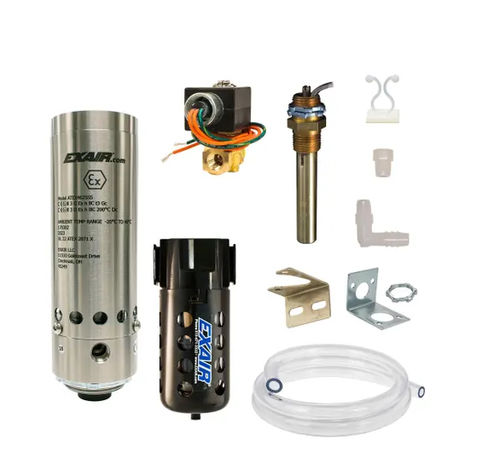

ATEX electrical cabinet air conditioner Model ATEX4840

side-mountcompactfor computer rooms

Overview
Aluminum thermostat-controlled ATEX Cabinet Cooler Systems are engineered and approved for use with purged electrical enclosures in ATEX-zoned areas (Zones 2 and 22). Systems use vortex tube technology to generate cold air without moving parts, include a water/dirt filter separator to prevent condensate and contaminants entering the enclosure, and supply a cold air distribution kit to direct air for circulation or to specific hot spots. Thermostat-controlled units are factory-set at 95°F (35°C) and activate the cooler only when internal temperatures approach critical levels. Units are CE compliant and intended for use in combination with purged and pressurized control systems.

Applications

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Laser housings
• Electronic scales

Advantages

• Rated for Zones 2 and 22
• Compact and cost-effective
• Cooling capacities up to 5,600 Btu/hr (1,641 Watts)
• Quiet operation
• Install through a standard electrical knockout in minutes
• Maintain NEMA 4 enclosure integrity (IP66)
• Stabilize enclosure temperature and humidity
• No CFCs
• No moving parts — maintenance free
• Prevents nuisance tripping, heat damage and circuit drift
• Eliminates fans, filters and production losses due to overheating

Models (Thermostat Control)
Aluminum ATEX Cabinet Cooler Systems, Thermostat Control
Model — Btu/hr. (Watts)
ATEX4815 — 1,000 (293)
ATEX4825 — 1,700 (498)
ATEX4830 — 2,000 (586)
ATEX4840 — 2,800 (821)
ATEX4850 — 3,400 (997)
ATEX4860 — 4,000 (1,008)
ATEX4870 — 4,800 (1,210)
ATEX4880 — 5,600 (1,641)

Models — 240V, Thermostat Control
ATEX4815-240 — 1,000 (293)
ATEX4825-240 — 1,700 (498)
ATEX4830-240 — 2,000 (586)
ATEX4840-240 — 2,800 (821)
ATEX4850-240 — 3,400 (997)
ATEX4860-240 — 4,000 (1,008)
ATEX4870-240 — 4,800 (1,210)
ATEX4880-240 — 5,600 (1,641)

Models — 24VDC, Thermostat Control
ATEX4815-24VDC — 1,000 (293)
ATEX4825-24VDC — 1,700 (498)
ATEX4830-24VDC — 2,000 (586)
ATEX4840-24VDC — 2,800 (821)
ATEX4850-24VDC — 3,400 (997)
ATEX4860-24VDC — 4,000 (1,008)
ATEX4870-24VDC — 4,800 (1,210)
ATEX4880-24VDC — 5,600 (1,641)

Performance (Thermostat Control) — cooling capacity at 100 PSIG (6.9 BAR)
Model — Btu/hr. — Watts — Sound Level (dBA)
ATEX4815 / ATEX4815-240 / ATEX4815-24VDC — 1,000 — 293 — 73 dBA
ATEX4825 / ATEX4825-240 / ATEX4825-24VDC — 1,700 — 498 — 80 dBA
ATEX4830 / ATEX4830-240 / ATEX4830-24VDC — 2,000 — 586 — 80 dBA
ATEX4840 / ATEX4840-240 / ATEX4840-24VDC — 2,800 — 821 — 82 dBA
ATEX4850 / ATEX4850-240 / ATEX4850-24VDC — 3,400 — 997 — 84 dBA
ATEX4860 / ATEX4860-240 / ATEX4860-24VDC — 4,000 — 1,171 — 84 dBA
ATEX4870 / ATEX4870-240 / ATEX4870-24VDC — 4,800 — 1,406 — 84 dBA
ATEX4880 / ATEX4880-240 / ATEX4880-24VDC — 5,600 — 1,641 — 85 dBA

How It Works
Compressed air enters the vortex-tube powered Cabinet Cooler and is separated into hot and cold streams. Hot air is muffled and exhausted; cold air is discharged into the control cabinet via the cold air distribution kit. Exhaust is maintained at a slight positive pressure so outside air cannot enter the panel, providing both cooling and purging of the enclosure.

Other Considerations

• Filtration: systems include a 5-micron automatic-drain water and dirt filter to protect electronics. If oil is present in the supply, use a coalescing (oil-removal) filter.
• Cold Air Distribution Kit: includes flexible tubing, adhesive clips and fittings to direct cold air to hot spots.
• Humidity: continuous-operation systems stabilize relative humidity inside the enclosure at ~45% with no internal condensation (enclosure must be sealed).
• Inlet Air Temperature: Cabinet Coolers yield approximately a 54°F (30°C) drop from supply air temperature at 100 PSIG; higher inlet temperatures or lower pressures reduce cooling capacity.
• Mounting: install through a standard electrical knockout; side-mount kits available to maintain enclosure rating for side installation.
• Thermostat Control: standard thermostat factory set at 95°F (35°C); ATEX-certified solenoid valves and thermostats are available for thermostat-controlled systems.

Accessories
Side-mount kits (Type 303 or Type 316 stainless steel) for installations where top mounting is impractical. Cold air distribution kits and filter separators are included; solenoid valve and thermostat included on thermostat-controlled models.

Technical specifications

• Brand: EXAIR
• Product family: Aluminum ATEX Cabinet Cooler® Systems (thermostat control)
• ATEX approval for Zones 2 and 22
• Cooling capacities: 1,000 to 5,600 Btu/hr (293 to 1,641 Watts)
• Cooling capacity rating measured at 100 PSIG (6.9 BAR) supply pressure
• Typical cold air temperature drop: ~54°F (30°C) below supply air at 100 PSIG
• Thermostat factory setpoint: 95°F (35°C); typical control tolerance ±2°F (1°C)
• Voltages available: 110VAC (standard), 240VAC, 24VDC (model variants available)
• Enclosure rating maintained: NEMA 4 (IP66) integrity via low-pressure relief valve
• Filter: 5-micron automatic-drain water and dirt filter included
• Materials: Aluminum standard; Type 303 and Type 316 stainless steel available for corrosive environments
• No moving parts — maintenance free; no CFCs
• Includes: cooler (vortex tube based), filter separator, cold air distribution kit; thermostat and ATEX solenoid valve included on thermostat models
• Sound level: model-dependent (73–85 dBA across range)
• Warranty: five year "Built To Last" warranty
• Note: ATEX Cabinet Cooler Systems are not purged and pressurized control systems and must be used in conjunction with an appropriate purged and pressurized enclosure/control system
