Vertical electrical cabinet air conditioner Model HZ4840

for hazardous locationsoutdoorenergy-saving

Overview

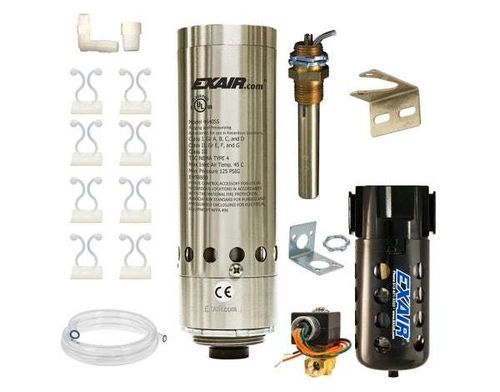

Thermostat-controlled Hazardous Location NEMA 4 (IP66) Cabinet Cooler® Systems are engineered and UL classified for use on purged electrical enclosures in classified areas. These vortex-tube systems generate cold air with no moving parts, include a 5‑micron automatic drain water/dirt filter separator and a cold-air distribution kit, and feature a low-pressure relief valve that closes when the cooler is off to preserve NEMA 4 integrity. Thermostat control activates cooling only when internal temperatures approach preset limits and is recommended for fluctuating heat loads.

Applications

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Laser housings
• Electronic scales

Advantages

• Rated for Division 1 Hazardous Locations (UL classified)
• UL Classified and CE compliant
• Multiple cooling capacities: 1,000 to 5,600 Btu/hr
• No moving parts for low maintenance
• Thermostat control reduces compressed air consumption
• High cooling capacities (up to 5,600 Btu/hr / 1,641 W)
• Five‑year warranty

Models (Thermostat Control)
NEMA 4 (IP66) HazLoc Cabinet Cooler Systems, Thermostat Control
Model - Btu/hr (Watts)
HZ4815 - 1,000 (293)
HZ4825 - 1,700 (498)
HZ4830 - 2,000 (586)
HZ4840 - 2,800 (821)
HZ4850 - 3,400 (997)
HZ4860 - 4,000 (1,171)
HZ4870 - 4,800 (1,406)
HZ4880 - 5,600 (1,641)

Performance (summary)
Cooling capacity rated at 100 PSIG (6.9 BAR) supply pressure. Sound levels (dBA) per model: HZ4815 = 73; HZ4825/HZ4830 = 80; HZ4840 = 82; HZ4850 = 84; HZ4860/HZ4870 = 84; HZ4880 = 85.

Key features and components

• Thermostat control (factory set at 95°F / 35°C, typical control ±2°F / 1°C)
• Included solenoid valve for thermostat models (UL listed / HazLoc solenoid where applicable)
• 5‑micron automatic drain water and dirt filter separator included
• Cold Air Distribution Kit included (flexible tubing, clips, fittings) to direct cold air to circulate or target hot spots
• Low-pressure relief valve to maintain NEMA 4 enclosure integrity when cooler is off
• Available in 110/120 VAC, 240 VAC and 24 VDC versions
• Type 303 and Type 316 stainless steel options for corrosive environments
• Continuous-operation (non-thermostat) and dual systems available for additional cooling

Installation & mounting
Mounts through a standard electrical knockout (1-1/2 NPS). NEMA 4 and 4X HazLoc Cabinet Coolers may be mounted on top of the panel or on the side using Side Mount Kits (side mount kits maintain the NEMA rating).

Other considerations
When sealed correctly, relative humidity inside the enclosure for continuous operation stabilizes at approximately 45%; inlet air temperature and supply pressure affect delta‑T and cooling capacity. If oil is present in the compressed air supply, use a coalescing (oil removal) filter in addition to the standard filter separator.

Technical specifications

• Cooling capacities: 1,000 to 5,600 Btu/hr (≈293 to 1,641 Watts)
• NEMA rating: NEMA 4 (IP66) – dust-tight, oil-tight, splash resistant, indoor/outdoor
• Hazardous area approvals: UL Classified for Class I Div 1 Groups A, B, C, D; Class II Div 1 Groups E, F, G; and Class III
• Thermostat setpoint (standard): 95°F (35°C), rated 24 VAC–240 VAC and 24 VDC
• Filter: 5‑micron automatic drain water and dirt filter included
• Materials: standard models; Type 303 or Type 316 stainless steel options for corrosive environments
• Voltage options (thermostat models): 110/120 VAC, 240 VAC, 24 VDC
• Sound levels: 73–85 dBA depending on model
• Cooling capacity rating condition: measured at 100 PSIG (6.9 BAR) supply pressure
• Includes: Cabinet Cooler (vortex-tube based), filter separator, cold air distribution kit; thermostat and solenoid valve included on thermostat-control systems
• Warranty: 5 year built-to-last warranty
