Side-mount electrical cabinet air conditioner Model 4730SS-316

industrialfor hazardous locationsfor computer rooms

Overview

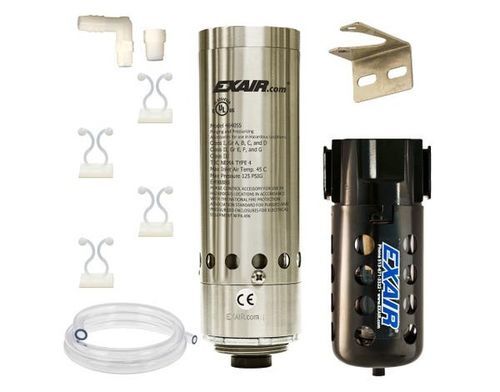

Continuous-operation Hazardous Location NEMA 4X (IP66) Cabinet Cooler Systems are designed and UL-classified for use on purged electrical enclosures in classified areas. Constructed in stainless steel for food-service and corrosive environments, the HZ47 series offers cooling capacities from 1,000 to 5,600 Btu/hr. Systems use vortex-tube technology to deliver cold air with no moving parts and are maintenance free. Standard equipment includes a 5-micron water/dirt filter separator and a cold air distribution kit.

Applications

• Programmable controllers (PLCs)
• Line control cabinets
• Motor control centers (MCC)
• Relay and power distribution panels
• NC/CNC systems
• Modular control centers
• CCTV and inspection cameras
• Computer and server cabinets
• Laser housings and optics enclosures
• Electronic weighing and instrumentation cabinets

Advantages

• Rated for Division I Hazardous Locations
• UL Classified and CE compliant for use on purged enclosures
• Eight selectable cooling capacities from 1,000 to 5,600 Btu/hr
• No moving parts — minimal maintenance
• Optional thermostat control to reduce operating time and compressed-air use
• High cooling capacity up to 5,600 Btu/hr (1,641 W)
• Five-year warranty

Models (continuous operation, Type 303 Stainless Steel)
HZ4715SS — 1,000 Btu/hr (293 W)
HZ4725SS — 1,700 Btu/hr (498 W)
HZ4730SS — 2,000 Btu/hr (586 W)
HZ4740SS — 2,800 Btu/hr (821 W)
HZ4750SS — 3,400 Btu/hr (997 W)
HZ4760SS — 4,000 Btu/hr (1,171 W)
HZ4770SS — 4,800 Btu/hr (1,406 W)
HZ4780SS — 5,600 Btu/hr (1,641 W)

Models (continuous operation, Type 316 Stainless Steel)
HZ4715SS-316 — 1,000 Btu/hr (293 W)
HZ4725SS-316 — 1,700 Btu/hr (498 W)
HZ4730SS-316 — 2,000 Btu/hr (586 W)
HZ4740SS-316 — 2,800 Btu/hr (821 W)
HZ4750SS-316 — 3,400 Btu/hr (997 W)
HZ4760SS-316 — 4,000 Btu/hr (1,171 W)
HZ4770SS-316 — 4,800 Btu/hr (1,406 W)
HZ4780SS-316 — 5,600 Btu/hr (1,641 W)

Performance (continuous operation summary at 100 PSIG / 6.9 BAR)
HZ4715SS / HZ4715SS-316 — 1,000 Btu/hr — 73 dBA
HZ4725SS / HZ4725SS-316 — 1,700 Btu/hr — 80 dBA
HZ4730SS / HZ4730SS-316 — 2,000 Btu/hr — 80 dBA
HZ4740SS / HZ4740SS-316 — 2,800 Btu/hr — 82 dBA
HZ4750SS / HZ4750SS-316 — 3,400 Btu/hr — 84 dBA
HZ4760SS / HZ4760SS-316 — 4,000 Btu/hr — 84 dBA
HZ4770SS / HZ4770SS-316 — 4,800 Btu/hr — 84 dBA
HZ4780SS / HZ4780SS-316 — 5,600 Btu/hr — 85 dBA

What is included / Configurations
Continuous-operation systems include the cabinet cooler, a 5-micron water/dirt filter separator and a cold air distribution kit (tubing, clips and fittings). Thermostat-controlled configurations add a solenoid valve and thermostat to reduce duty cycle. If oil is present in supply air, a coalescing oil-removal filter is recommended.

Notes
These HazLoc Cabinet Cooler Systems are UL Classified for use on purged and pressurized enclosures but are not purged enclosures themselves. They must be installed as part of an appropriate purged enclosure system.

Technical specifications

• Series: HazLoc Cabinet Cooler 4 Systems (continuous operation)
• Representative product SKU on page: PHZ4710SS
• NEMA rating: NEMA 4X (IP66) — dust and oil tight, splash resistant, indoor/outdoor capable
• Materials: Type 303 and Type 316 stainless steel options
• Cooling capacities: 1,000; 1,700; 2,000; 2,800; 3,400; 4,000; 4,800; 5,600 Btu/hr (293 to 1,641 W)
• Reference pressure: ratings at 100 PSIG (6.9 BAR) supply pressure
• Typical sound levels: 73 to 85 dBA depending on model
• Cold air temperature drop: approx. 54°F (30°C) below inlet at 100 PSIG
• Filtration: 5-micron automatic drain water and dirt filter included
• Includes cold air distribution kit for routing to internal hot spots
• Mounting: installs through standard electrical knockout (1-1/2 NPS); side-mount kits available
• Certifications: UL Classified, CE compliant; thermostatic systems include UL-listed solenoid options
• Humidity: continuous operation stabilizes enclosure relative humidity near 45% if sealed
• Warranty: five-year warranty
