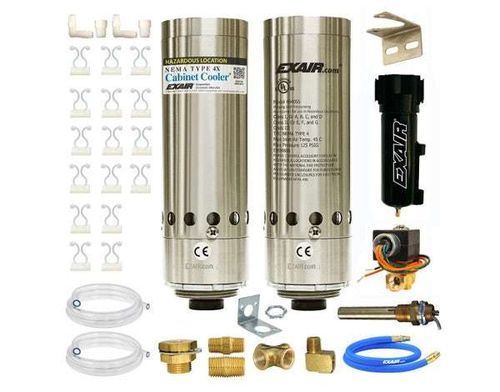

Side-mount electrical cabinet air conditioner HZ4840SS

industrialfor hazardous locationsoutdoor

Overview
Thermostat-controlled Hazardous Location NEMA 4X (IP66) Cabinet Cooler® Systems are engineered and certified for use on purged electrical enclosures in classified areas. UL-classified and CE-compliant, these EXAIR HazLoc systems use vortex tube technology to produce cold air with no moving parts, providing a low-cost, maintenance-free cooling solution.

Applications

• Programmable logic controllers (PLC) and NC/CNC cabinets
• Line control and motor control centers (MCC)
• Relay and relay logic panels
• Computer and electronic equipment enclosures
• CCTV housings, laser enclosures and electronic scales

Advantages

• Rated for Division 1 Hazardous Locations (HazLoc)
• UL classified and CE compliant
• Eight cooling capacities from 1,000 to 5,600 Btu/hr (293–1,641 W)
• No moving parts—minimal maintenance
• Thermostat control (factory set at 95°F / 35°C) to reduce operating cost
• Available in Type 303 and Type 316 stainless steel for corrosive or food-service environments
• Five-year warranty

Models (examples by material / voltage / thermostat control)
NEMA 4X (IP66) HazLoc Cabinet Cooler Systems - Type 303 Stainless Steel (120V) - Thermostat Control
HZ4815SS — 1,000 (293)
HZ4825SS — 1,700 (498)
HZ4830SS — 2,000 (586)
HZ4840SS — 2,800 (821)
HZ4850SS — 3,400 (997)
HZ4860SS — 4,000 (1,171)
HZ4870SS — 4,800 (1,406)
HZ4880SS — 5,600 (1,641)

NEMA 4X (IP66) HazLoc Cabinet Cooler Systems - Type 316 Stainless Steel (120V) - Thermostat Control
HZ4815SS-316 — 1,000 (293)
HZ4825SS-316 — 1,700 (498)
HZ4830SS-316 — 2,000 (586)
HZ4840SS-316 — 2,800 (821)
HZ4850SS-316 — 3,400 (997)
HZ4860SS-316 — 4,000 (1,171)
HZ4870SS-316 — 4,800 (1,406)
HZ4880SS-316 — 5,600 (1,641)

NEMA 4X (IP66) HazLoc Cabinet Cooler Systems - Type 303 Stainless Steel (240V) - Thermostat Control
HZ4815SS-240 — 1,000 (293)
HZ4825SS-240 — 1,700 (498)
HZ4830SS-240 — 2,000 (586)
HZ4840SS-240 — 2,800 (821)
HZ4850SS-240 — 3,400 (997)
HZ4860SS-240 — 4,000 (1,171)
HZ4870SS-240 — 4,800 (1,406)
HZ4880SS-240 — 5,600 (1,641)

NEMA 4X (IP66) HazLoc Cabinet Cooler Systems - Type 316 Stainless Steel (240V) - Thermostat Control
HZ4815SS-240-316 — 1,000 (293)
HZ4825SS-240-316 — 1,700 (498)
HZ4830SS-240-316 — 2,000 (586)
HZ4840SS-240-316 — 2,800 (821)
HZ4850SS-240-316 — 3,400 (997)
HZ4860SS-240-316 — 4,000 (1,171)
HZ4870SS-240-316 — 4,800 (1,406)
HZ4880SS-240-316 — 5,600 (1,641)

Performance (selected)
Cooling capacities are specified at 100 PSIG (6.9 BAR) supply pressure. Example sound levels (dBA) per model: HZ4815 = 73 dBA; HZ4825 = 80 dBA; HZ4830 = 80 dBA; HZ4840 = 82 dBA; HZ4850 = 84 dBA; HZ4860 = 84 dBA; HZ4870 = 84 dBA; HZ4880 = 85 dBA.

Accessories

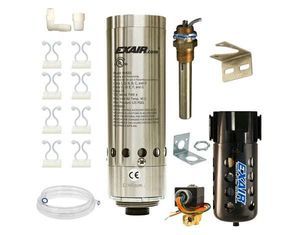

• Side mount kits (small and large) to maintain NEMA rating when mounted to side panels; Type 303 or 316 stainless steel construction
• Cold air distribution kit — tubing, adhesive clips and fittings to route cold air to hot spots
• Filter separator — 5 µm automatic drain water/dirt filter included; optional coalescing filter recommended if oil is present in compressed air
• Solenoid valve and thermostat included with thermostat-controlled systems (solenoid rated for hazardous configuration where applicable)

Important notes
HazLoc Cabinet Cooler® Systems are UL classified for use on purged and pressurized enclosures and must be used as part of a purged and pressurized control system; the Cooler itself is not a purge system. Thermostatic systems are factory set at 95°F (35°C) and typically maintain ±2°F (±1°C) inside the enclosure. Continuous-operation models are available when constant cooling/purge is required. NEMA 4X (IP66) construction provides corrosion resistance and indoor/outdoor capability.

Technical specifications

• Brand: EXAIR
• Product family: Hazardous Location Cabinet Cooler® Systems (HZ48 Series)
• NEMA rating: 4X (IP66) — dust-tight, oil-tight, splash resistant, indoor/outdoor
• Certification: UL classified and CE compliant for specified hazardous areas (Class I Div 1 Groups A–D; Class II Div 1 Groups E–G; Class III)
• Cooling capacities: 1,000 to 5,600 Btu/hr (293 to 1,641 W)
• Operating principle: vortex tube cold air generation — no moving parts
• Thermostat control: standard unit factory set at 95°F (35°C); solenoid valves available (UL Listed/Classified where required)
• Filter: 5 µm automatic drain water and dirt filter included; coalescing filter recommended if oil present
• Cold air distribution kit included
• Typical cold air temperature drop: ~54°F (30°C) below supply air at 100 PSIG (6.9 BAR)
• Performance rating measured at 100 PSIG supply
• Sound levels: approx. 73–85 dBA depending on model
• Materials: Type 303 and Type 316 stainless steel options
• Warranty: five-year warranty
