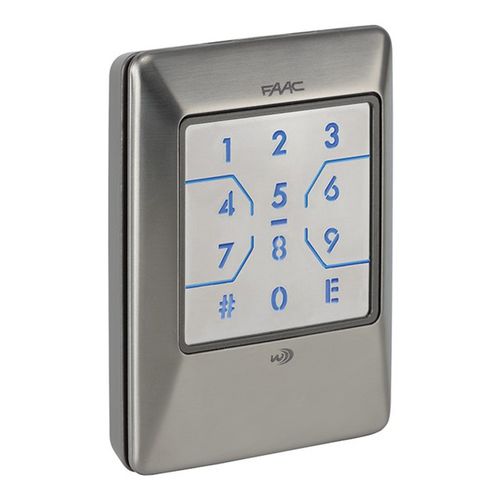

Aluminum keypad XKP series

stainless steelwirelessweatherproof

Product overview
Compact access keypads for gates, doors and barriers. The FAAC XKP series includes the wired XKP B (BUS 2easy) and the battery-powered wireless XKP W 868 (FAAC SLH rolling-code). Supports up to 255 user codes for flexible access management.

Functional design
Keypads are activated by entering an alphanumeric code. Two operating modes are available:

• EASY: each user code triggers one predefined command.
• ADVANCED: each user code can trigger one, multiple or all available commands.

Quality materials
Construction uses a painted aluminium base and a stainless-steel keypad cover with blue LED backlighting. Designed for outdoor use, the keypads resist rain, snow and humidity and remain operable with gloves.

Connection (XKP B)
The XKP B model uses BUS 2easy technology over two non-polarised wires. It connects to control boards with BUS 2easy in 1- or 2-command mode and can interface with BUS XBR2 and XBR4 for 2 or 4 command availability. Cable short-circuiting does not transmit a command (tamper protection). BUS 2easy includes an integrated fail-safe check.

Wireless: patented technology (XKP W 868)
The XKP W 868 is battery powered and wireless, transmitting up to 4 distinct commands. FAAC SLH rolling-code technology changes the code at each use to maximise security.

Further benefits of the XKP W 868 wireless keypad

• Time efficient – reduced installation time by avoiding wiring.
• Reduced costs – no restoration after cable routes.
• Environmentally friendly – fewer materials required for installation.
• Cost efficient – potential payback via installation efficiencies.
• Visually compact – low-profile design with dayglow numbered buttons.
• Battery – CR2450, typical life ~2 years.
• Read range – up to 50 m.
• Compatibility – uses FAAC SLH technology compatible with corresponding receivers/transmitters.

Key features

• XKP B: BUS 2easy wired connection.
• XKP W 868: wireless with patented FAAC SLH rolling-code technology.

Variants

• XKP B INOX (BUS version) | Part number: 404045
• XKP W 868 INOX (SLH radio version) | Part number: 404038

Technical specifications

• Series: XKP
• Up to 255 user codes
• Operating modes: EASY and ADVANCED
• Materials: painted aluminium base; stainless-steel keypad cover; blue LED backlighting
• Weather resistance: resistant to rain, snow and humidity; operable with gloves
• XKP B: BUS 2easy connection (two non-polarised wires); compatible with BUS XBR2 and XBR4; short-circuit tamper protection; built-in fail-safe check
• XKP W 868: wireless, battery powered; transmits up to 4 commands; FAAC SLH rolling-code technology
• Battery (XKP W 868): CR2450, typical life ~2 years
• Wireless read range: up to 50 m
• Part numbers: 404045 (XKP B INOX), 404038 (XKP W 868 INOX)
