3D LIDAR sensor X-Guard

smallindustrialfor obstacle detection

Product overview

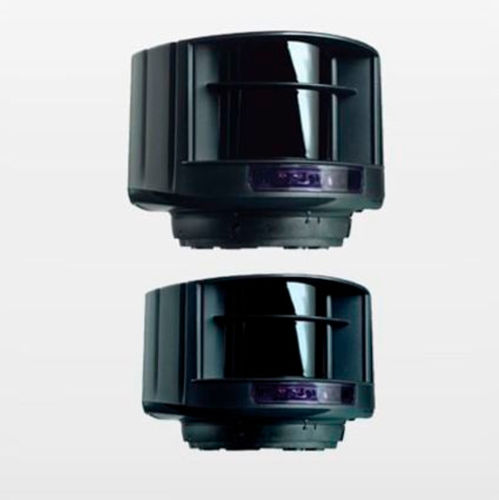

3D safety sensor for gates and industrial doors. Available models: X-Guard 5m (5m x 5m) and X-Guard 10m (9.9m x 9.9m). Variable detection-plane depth up to 0.5 m (X-Guard 5) or 1 m (X-Guard 10), depending on installation height.
Certified safety: PL "d" / CAT 2 according to EN ISO 13849-1 and Type E according to EN12453. Provides three-dimensional detection in front of the door and detection capability for small objects down to a few centimeters, enabling replacement of contact edges, light beams and lightgrids.
Suitable for new installations and retrofit applications; designed for straightforward installation.

Variants
Model | Part number
X-Guard 5m | N-785027
X-Guard 10m | N-785028
Mounting Bracket | N-785031
Programmer Remote | N-02.0103

Notes
* Detection of objects down to a few centimeters depending on the application.

Technical specifications

• Maximum detection range: X-Guard 10m: 9.9m x 9.9m; X-Guard 5m: 5m x 5m
• Variable detection-plane depth: 0.5 m (X-Guard 5) / 1 m (X-Guard 10) (maximum; dependent on installation height)
• Three-dimensional detection zone in front of the door
• Detection capability for small objects (down to a few centimeters depending on application)
• Safety certifications: PL "d" / CAT 2 (EN ISO 13849-1); Type E (EN12453)
• Intended to replace contact edges, light beams and lightgrids
• Suitable for both new installations and retrofit projects
• Available variants and part numbers: X-Guard 5m (N-785027), X-Guard 10m (N-785028), Mounting Bracket (N-785031), Programmer Remote (N-02.0103)
