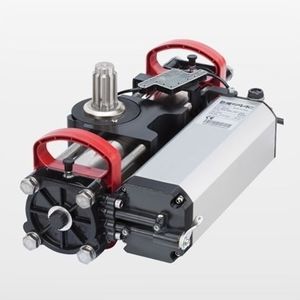

Swing door operator S418

Overview
Electromechanical operator for residential swing-leaf gates, suitable for single-leaf lengths from 0.70 m up to 2.7 m (self-locking up to 2.3 m; electric lock required for lengths over 2.3 m). Continuous-duty design in 24V configuration with an effective stroke of 350 mm, adaptable to various pillar dimensions.

Key features

• Built-in mechanical opening and closing stops (can be omitted to obtain 390 mm stroke)
• Effective stroke: 350 mm (390 mm available without stops)
• Multi-position fixing bracket for non-welded installation
• E024S control unit with anti-crushing device and virtual encoder enabling reverse on obstacle detection
• Self-locking up to 2.3 m leaf length

Variants

• Model: S418 24V
• Part number: 104301
• Application: Residential
• Operator type: Electromechanical
• Power supply: 24V
• Max cycles per hour: Continuous
• Leaf length (min - max): 0.70 - 2.70 m
• Gate obstacle detection: Virtual encoder

Technical specifications

• Duty: Residential
• Max leaf length: 2.7 m (electric lock required over 2.3 m)
• Anti-crush features: Force limited by control board; virtual encoder on control board
• Locking: Self-locking up to 2.3 m
• Special features: Built-in mechanical stops; multi-position brackets for non-weld installation; long stroke of 350 mm standard (390 mm without stops) for improved adaptability to various pillar dimensions
