Swing door operator 750 CP
Add to favorites
Compare this product
Description
Technical specification
Key features
Product details

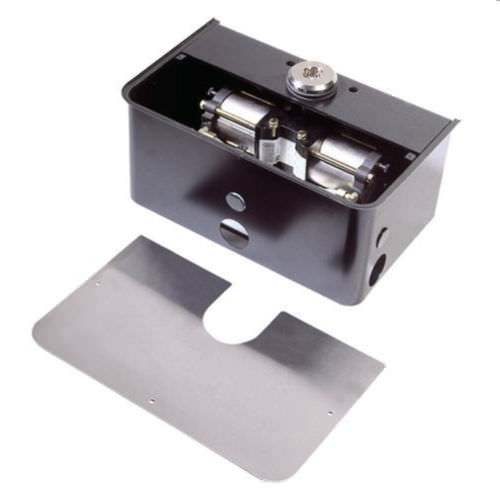

Underground hydraulic operator for residential and condominium swing-leaf gates with single-leaf max weight of 800 kg.
FAAC - Simply automatic.
Variants
Technical characteristics
- Duty: Residential
- Max leaf length: 3.5 m
- Max leaf weight: 800 kg
- Anti-crush features: Hydraulic bypass valves
- Locking: Self locking up to 1.8 m
- Special features: 100° and 180° opening options; Hydraulic pump mounted above ground; Offset geometry arm available
- Operator type: Hydraulic (variants) and Electromechanical (100° jack variant)
- Power supply (variants shown): 230V
Key features
- Discreet, quiet operator composed of a single underground drive unit and a hydraulic pump unit
- Designed for large gate leaves up to 3.5 m
- Installation simplified by the foundation box
- Maximum anti-crushing safety ensured by the exclusive hydraulic device
Product details
Underground hydraulic operator for residential and condominium swing-leaf gates with single-leaf max weight of 800 kg.
FAAC - Simply automatic.
Variants
- 750 CBAC 230V | Part No. 107720 | Light commercial; Residential | Hydraulic | 45 cycles/h | 230V | Leaf length 0.70 - 1.80 m | No encoder
- 750 SB 230V | Part No. 107721 | Light commercial; Residential | Hydraulic | 45 cycles/h | 230V | Leaf length 0.70 - 3.50 m | No encoder
- 100° opening jack | Part No. 108759 | Light commercial; Residential | Electromechanical | — | 230V | Leaf length 0.10 - 0.10 m | No encoder
- 180° opening jack | Part No. 108760 | Light commercial; Residential | Hydraulic | 45 cycles/h | 230V | Leaf length 0.10 - 3.50 m | No encoder
Technical characteristics
- Duty: Residential
- Max leaf length: 3.5 m
- Max leaf weight: 800 kg
- Anti-crush: Hydraulic bypass valves
- Locking: Self locking up to 1.8 m
- Special features: 100° and 180° opening options; Hydraulic pump above ground; Offset geometry arm available
- Operator types: Hydraulic and Electromechanical (100°)
- Power supply: 230V (variants)
