Self-locking gate driver S800
Add to favorites
Compare this product
Characteristics
- Options
- self-locking
Description
Technical specification
Key features
Product details

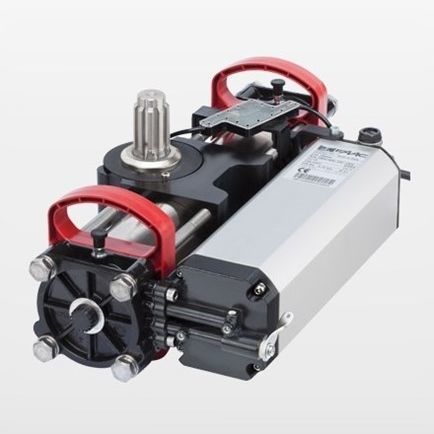

Underground hydraulic operator designed for residential and light-commercial swing-leaf gates. Supports single-leaf lengths up to 4 m and leaf weights up to 800 kg. Available in 100° and 180° rotation versions. Encoder option provides precise end-position detection. Hydraulic release kit is available for maintenance and emergency manual operation. FAAC - Simply automatic.
Variants (summary)
- Duty: Residential & light commercial
- Max leaf length: 4 m
- Max leaf weight: 800 kg
- Voltage: 230 V
- Underground hydraulic operator with optional integrated absolute magnetic encoder (bus 2Easy)
- Anti-crush: force limited by bypass valves
- Self-locking up to 2 m
- Available in 100° and 180° versions; built-in stops on all operators
- Max cycles per hour: 45
- Hydraulic release kit available
Key features
- Integrated absolute magnetic encoder with bus 2Easy (non-polarized two-wire connection). FAAC PATENT
- Integrated positive stops eliminate the need for ground mechanical stops
- Service release device for manual operation
- Integrated handles for easier handling and installation. FAAC PATENT
Product details
Underground hydraulic operator designed for residential and light-commercial swing-leaf gates. Supports single-leaf lengths up to 4 m and leaf weights up to 800 kg. Available in 100° and 180° rotation versions. Encoder option provides precise end-position detection. Hydraulic release kit is available for maintenance and emergency manual operation. FAAC - Simply automatic.
Variants (summary)
- S800 ENC CBAC 100 DEGREES 230V | 108800 | Light commercial; Residential | Hydraulic | 45 | 230V | 0.70 - 2.00 | Encoder option
- S800 ENC CBAC 180 DEGREES 230V | 108801 | Light commercial; Residential | Hydraulic | 45 | 230V | 0.70 - 2.00 | Encoder option
- S800 ENC SBW 100 DEGREES 230V | 108802 | Light commercial; Residential | Hydraulic | 45 | 230V | 0.70 - 4.00 | Encoder option
- S800 ENC SBW 180 DEGREES 230V | 108803 | Light commercial; Residential | Hydraulic | 45 | 230V | 0.70 - 4.00 | Encoder option
- S800 CBAC 100 DEGREES 230V | 1088002 | Light commercial; Residential | Hydraulic | 45 | 230V | 0.70 - 2.00 | Encoder option
- S800 CBAC 180 DEGREES 230V | 1088012 | Light commercial; Residential | Hydraulic | 45 | 230V | 0.70 - 2.00 | Encoder option
- S800 SBW 100 DEGREES 230V | 1088022 | Light commercial; Residential | Hydraulic | 45 | 230V | 0.70 - 4.00 | Encoder option
- S800 SBW 180 DEGREES 230V | 1088032 | Light commercial; Residential | Hydraulic | 45 | 230V | 0.70 - 4.00 | Encoder option
