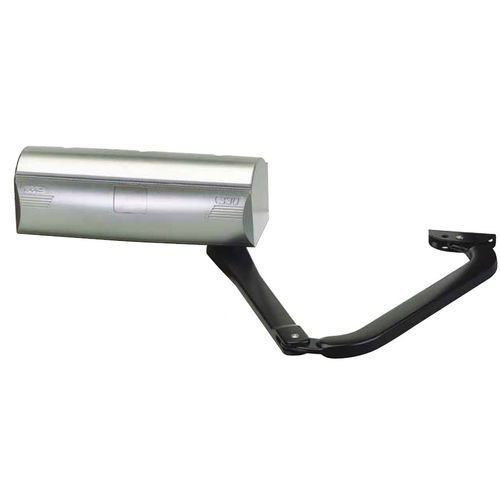

Swing door operator 390

Technical specification

• Duty: Residential
• Max leaf length: 1.8 m (3.0 m with electric lock)
• Anti-crush: force limited by control board; virtual encoder on 24V systems
• Locking: self-locking up to 1.8 m
• Special feature: articulated arm for adaptable geometry; suited for gates mounted on large pillars
• Operator type: electro-mechanical
• Power supply: 230V (also available in 24V)
• Max cycles per hour: 18
• Gate obstacle detection: no encoder on 230V variant

Variants

• Model: 390 230V
• Part number: 104570
• Application: Residential
• Operator: Electro-mechanical
• Leaf length (min–max): 0.80–3.00 m

Key features

• Non-reversing motor holds gate in open and closed positions without additional mechanical lock
• Anti-crush safety managed by electronic control to limit force
• Articulated arm enables installation on wide pillars and varied geometries
• Manual release device accessible from inside or outside the property
• Installation note: distance between hinge and pier edge must be max 300 mm for proper operation

Product details
The electro-mechanical operator is designed for simple installation without welding. Available in 230V and 24V versions and suitable for residential gates fixed on large pillars. Includes manual release and electronic safety features. FAAC.
