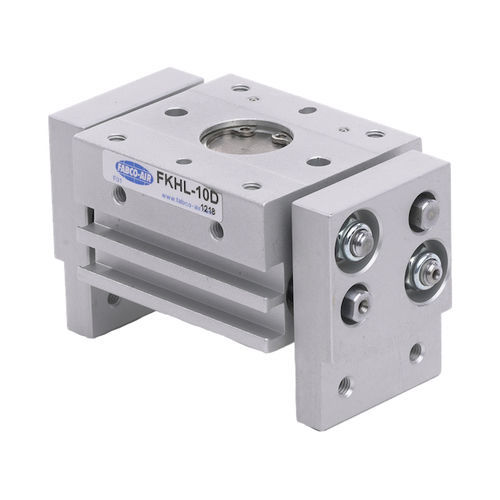

Electric gripper FKHL series
parallel2-jawhandling

electric gripper
electric gripper
Add to favorites
Compare this product


Characteristics

Operation
electric
Type
parallel
Number of jaws
2-jaw
Application
handling, for workpieces
Options
compact, magnetic
Grip strength

Min.: 13.3 N

Max.: 226.8 N

Stroke

Min.: 20 mm
(0.787 in)

Max.: 160 mm
(6.299 in)

Description

Wide Grippers With a Compact Design With its wide-gripper design, the FKHL Series is well-suited to handle larger parts in high volume jobs. Designed with oil-impregnated sleeve bearings encased in steel, these grippers move smoothly with no need for additional lubrication. The series also includes a built-in rod scraper for easier dust control and maintenance. Our dual-piston mechanism creates a high grip force to make sure the load stays in place. Key Specifications Features • Available in five bore sizes: 10, 16, 20, 25 and 32 millimeters • Available in stroke sizes from 20 to 160 millimeters • Operating pressure ranges: 15 to 87 psi • Operating media: compressed air • Repeatability: +/- 0.2 mm Technical Advantages • Magnetic piston standard • Standard rod scrapers for dust and debris protection • Oil impregnated sleeve bearings encased in steel on all units • Integrated sensor slots in gripper body: easy sensor mounting for both “open” and “closed” position sensing • Hard-coated aluminum gripper body: ensures abrasion, combats corrosion • No additional lubrication required
