Gas filter cartridge MG seriesdepthfiberglass

gas filter cartridge
gas filter cartridge
Add to favorites
Compare this product
indicative price

Characteristics

Media
for gas
Type of filtration
depth
Material
fiberglass
Removal rating

10 µm

Description

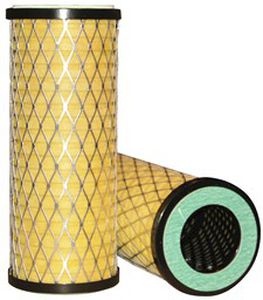

PECOFacet's Model MG glass fiber depth filter cartridges are for removing colloidal, slimy or sludge type solids 10 micron and larger or where compatibility problems exist with cellulose media. The cartridges are 6” (152 mm) OD, 3 ½” (89 mm) ID and 14 ½” (368 mm) long. Standard Design Features Max. recommended operating temperature: 300°F (148°C) Maximum differential pressure: 75 psi (5.25 kg/cm²) Flow direction: outside to in pH range from 1 to 9 Materials All metal components coated to protect against corrosion on model MG10 All metal components stainless steel on model MG10S Gaskets are CAF (non-asbestos) Metal outer wrap
