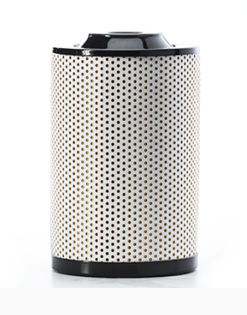

Water filter cartridge Go-No-Gofinemetalpleated

water filter cartridge
water filter cartridge
Add to favorites
Compare this product
indicative price

Characteristics

Media
water
Type of filtration
fine
Material
metal
Other characteristics
pleated
Applications
for general purposes
Field
industrial
Removal rating

Max.: 25 µm

Min.: 5 µm

Flow rate

Max.: 75 us gal/min (283.91 l/min)

Min.: 0.1 us gal/min (0.38 l/min)

Description

ABSORTIVE CARTRIDGES Double-duty for Twice the Protection PECOFacet’s Go-No-Go (GNG) absorptive cartridges perform two jobs with one cartridge. It absorbs water and removes solids reliably and efficiently. As the product stream flows from the outside of the cartridge to the inside, the GNG special water absorbent medium retains water, and the pleats expand. As the maximum water holding capacity is reached, there is a reduction in flow. The cartridge slows, then stops the flow of product as it reaches maximum capacity. This indicates that the cartridge is ready to be changed, assuring you of clean, dry product. Standard Design Features Recommended maximum operating temperature: 180ºF. Maximum differential pressure: 100 psi (7.0 kg/cm²). Flow direction: Outside to in. Layered multi-media pleated sections.
