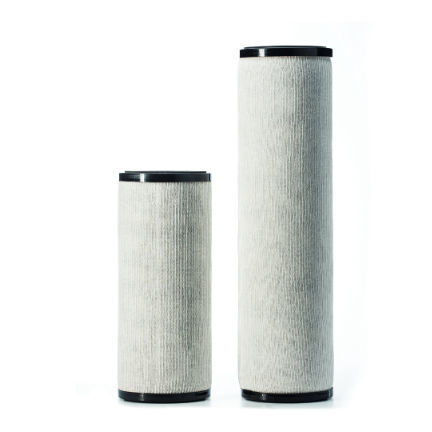

PECOFacet Model CB coalescer cartridges provide high flow and low initial pressure drop. These cartridges are widely used in petroleum bulk storage terminals, turbine fuels, lube oils, refineries, and many other industrial applications.
Each coalescer cartridge is constructed of various media, precisely arranged in many layers and pleats, and wrapped around a perforated metal center tube for balanced flow and structural strength. All are encased in an outer sock material. Cartridges are 6” OD (152 mm) by 3 ½” ID (89 mm) and are available in standard lengths from 11 ¼” (280 mm) to 57 ¼” (1450 mm). They are dimensionally interchangeable with PECOFacet's full range of 6” OD (152mm) coalescer cartridges.
Standard Design Features
Multi-layered media for increased solids holding capacity
Solids removal: 5 micron
Water removal down to 10 ppm
Balanced cartridge flow characteristics
Self-centering rod mount or screw base
Maximum recommended operating temperature: 240°F (115°C)
Maximum differential pressure: 75 psi (5.25 kg/cm²)
Flow direction: inside to out
pH range from 5 to 9
