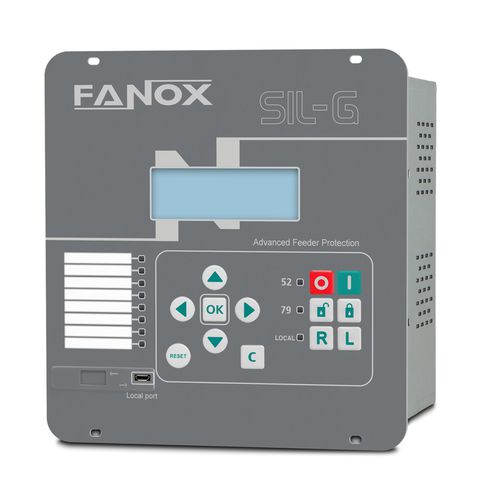

Feeder protection relay SIL-G

currentvoltagefrequency

SIL-G Advanced Feeder Protection Protection for Renewable Energy Facilities, Industrial Plants, and Secondary Network The SIL-G is a complete protection and control relay used in primary and secondary distribution networks for feeder and generator applications. This versatile relay excels in various functions, including current, voltage, power, and frequency monitoring. It is suitable for implementation at substation levels for the renewable sector's utilities and industrial power systems. Designed to accommodate various voltage levels, it is capable of operating with auxiliary supply voltages ranging from 24 to 230 V dc/ac. Supports IEC 61850 standard edition 1 and 2, implementing GOOSE messaging for the automation and control of substations Interoperability with other systems Equipped with a dedicated module for arc flash detection (AFD), with integrated sensors for a complete solution. Safe and secure by implementing Wi-Fi with WPA2-AES encryption and secure access levels Offers island protection by identifying wave changes based on voltage and frequency elements
