Tunnel formwork Tunnel Formwork

steel

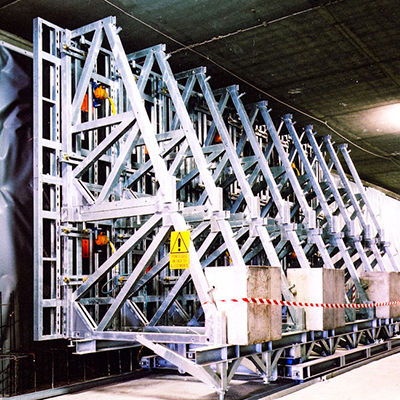

Destil single side shuttering supporting construction frames are used to realize single-sided walls and vertical (paratie….). Different steel frames can be put one on the other and connected with steel pins due to reach requested casting height. Typical structure is composed out of two parallel frames which are braced and fixed together with horizontal and oblique scaffolding tubes (F48) and swivel couplers. Front and back foot, both adaptable in height with adjustable wrench, allow to make perfect plumbing and adjust the structure when necessary. The anchorage system is very easy and quick; it consists in Pigtail anchor bar that is placed into the foundation before casting operations, She-bolt which carry and links Pigtail anchor bar, Anchor waling, connected to the frame construction and to the She-bolt. Using different frames is possible to reach 9 meters of casting height. Doka formwork compatible
