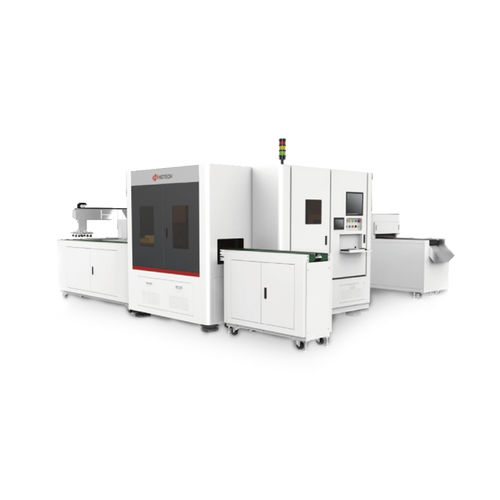

Laser cutting system LUGD Seriesfor glasscontourCNC
Add to favorites
Compare this product
Characteristics
- Technology
- laser
- Material
- for glass
- Product handled
- contour
- Control type
- CNC, servo-driven, with programming software, with control software
- Associated function
- multi-function, engraving, contour, milling, trimming, surfacing
- Applications
- for industrial applications, for the automotive industry
- Workpiece loading
- with automated loading
- Phase
- three-phase
- Configuration
- 2D, double-head
- Other characteristics
- automatic, high-speed, high-precision, high-performance, high-productivity, for mass production, precision, high-efficiency, with water cooling, with conveyor, for large parts, programmable, custom-made
- X travel
Max.: 110 mm
(4.33 in)Min.: 80 mm
(3.15 in)- Maximum cutting height
Max.: 2,300 mm
(90.6 in)Min.: 100 mm
(3.9 in)- Laser power
40 W
- Overall length
13,700 mm
(539 in)- Maximum width
2,840 mm
(112 in)- Height
2,300 mm
(91 in)- Accuracy
Max.: 99.9 %
Min.: 99.5 %
Description
Adopt laser infrared picosecond filament cutting technology to cut automobile rearview mirrors, replacing cutter wheel cutting, optimizing the existing processing process
High yields
Hot and cold cracks to fall off the finished product easily, and the yield rate is over 99%.
·High speed and high precision linear motor
Fast cutting speed and high precision cutting accuracy <0.05mm
·Self-developed laser source
New infrared picosecond technology with good beam quality, small focusable spot, high power stability and chipping <0.05mm
·Compatibility
Compatible with product size within 500*500mm, and compatible with single and double curves
