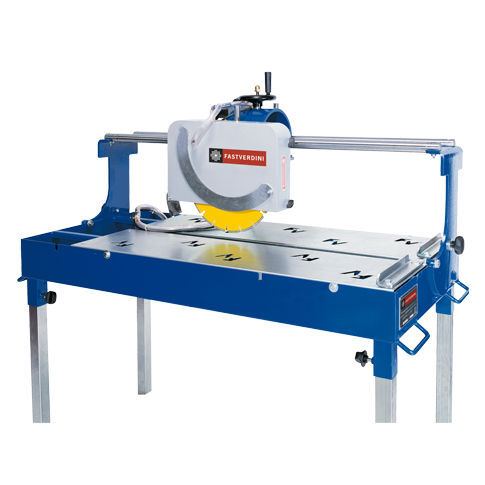

Electric cut-off saw SG650

for stone and concrete

Description
Cutting saw for building materials, with sliding cutting head on rectified chrome-plated bars and recirculating ball bearings. Equipped with a disk cooling water pump and capable of 45° angled cuts.

Accessories

• Lateral cutting guides
• Cutting guides adjustable from 0 to 45 degrees
• Fixed-bench lateral extension
• Roller-type lateral extension

Specification table
Model code: PSBSG650
Model: SG650
Max blade diameter mm: 350
Max cutting depth mm: 110
Cutting length mm: 650
Motor: single-phase electric
Speed rpm: 2800
Motor power kW (Hp): 2.2 (3.0)
Voltage Volts: 230
Operating weight kg: 91

Features / Technical specifications

• Sliding cutting head on rectified chrome-plated bars
• Recirculating ball bearings
• Water pump for disk cooling
• Angled cutting: up to 45°
• Max blade diameter: 350 mm
• Max cutting depth: 110 mm
• Cutting length: 650 mm
• Motor: single-phase electric, 230 V
• Speed: 2800 rpm
• Motor power: 2.2 kW (3.0 Hp)
• Operating weight: 91 kg
