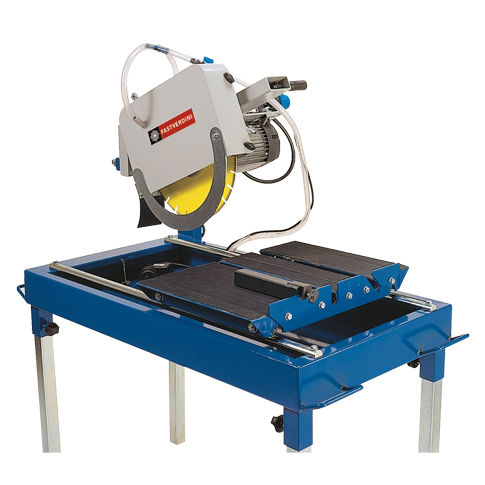

Electric cut-off saw TL600

for stonefor concrete

Overview
Wet cut-off saw for building materials with a sliding cutting table and direct drive on the motor shaft. Equipped with a water pump for blade cooling; enables 45° angle cuts. Suitable for cutting concrete, brick, stone and similar materials.

Specifications
Model code: PSBTL600
Model: TL600
Max blade diameter mm: 350
Max cutting depth mm: 140
Cutting length mm: 600
Motor: single-phase electric
Speed rpm: 2800
Motor power kW (Hp): 2.2 (3.0)
Voltage V: 230
Operating weight kg: 80

Features / technical details

• Sliding cutting surface for controlled longitudinal cuts
• Direct drive on motor shaft to minimise transmission losses
• Water pump for blade cooling and wet cutting dust suppression
• Adjustable angle for 45° mitre cuts
• Intended for masonry, concrete and stone cutting applications
