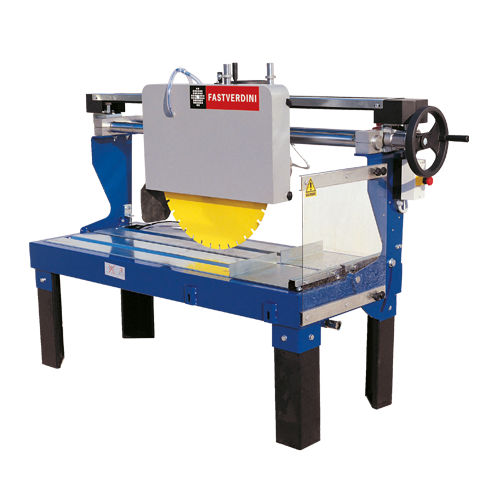

Electric cut-off saw BS650

for stone and concrete

Description
Cutting saw designed for high-thickness building materials. Cutting head slides on rectified chrome-plated bars with recirculating ball bearings. Equipped with a disk cooling water pump. Capable of 45° mitre cuts. Feed by hand wheel.

Accessories

• Lateral cutting guides
• Cutting guides adjustable 0–45°
• Fixed bench lateral extension
• Roller-type lateral extension

Technical specifications

• Model code: PSBBS650
• Model: BS650
• Max blade diameter (mm): 650
• Max cutting depth (mm): 250
• Cutting length (mm): 700
• Motor: Three-phase electric
• Speed (rpm): 1400
• Motor power kW (Hp): 4.0 (5.5)
• Voltage (V): 400
• Operating weight (kg): 192
