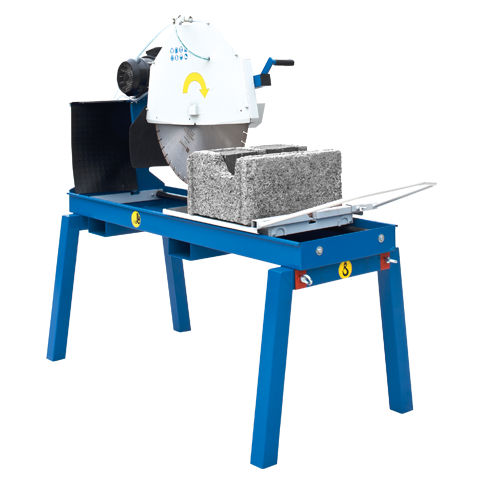

Circular saw TL600

for stonefor concretetraveling-head

Overview
Saw for cutting high-thickness building materials with a sliding cutting surface. Belt transmission and precise cutting. Equipped with a water pump for blade cooling. Capable of straight cuts and inclined cuts at 15°, 30° and 45° on the same cutting line.

Technical specifications

• Model code: PSBTL600
• Model: TL600
• Max blade diameter: 350 mm
• Max cutting depth: 140 mm
• Cutting length: 600 mm
• Motor: single-phase electric, 230 V
• Speed: 2800 rpm
• Motor power: 2.2 kW (3.0 Hp)
• Weight (operational): 80 kg

Features

• Sliding cutting table for material support
• Belt transmission
• Water-cooled blade (pump included)
• Adjustable inclined cuts at 15°, 30°, 45° aligned with straight cut
• Suitable for cutting thick masonry and construction materials
• Category: Bench saws, TL series
