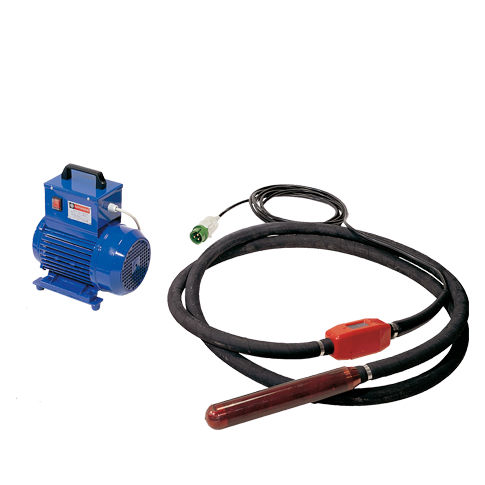

Electric concrete internal vibrator T27X

Description
High-frequency immersion vibrator with motor integrated into the shaft. Designed to maintain a constant vibration rate in fresh concrete for improved consolidation. Tempered steel end caps extend service life; end caps are not welded for easier repair. Self-lubricating bearings and oil cooling reduce condensation and increase reliability. Waterproof cable gland ensures a sealed hose connection.

Features / Technical specifications

• Model: T27X
• Model code: PFVIT27X
• Head diameter mm: 38
• Head length mm: 395
• Voltage V: 42
• Frequency Hz: 200
• Protective rubber hose m: 5
• Power cable m: 10
• Vibrations rpm (vibrations/min): 12,000
• Current during operation A: 4
• Weight kg: 6
