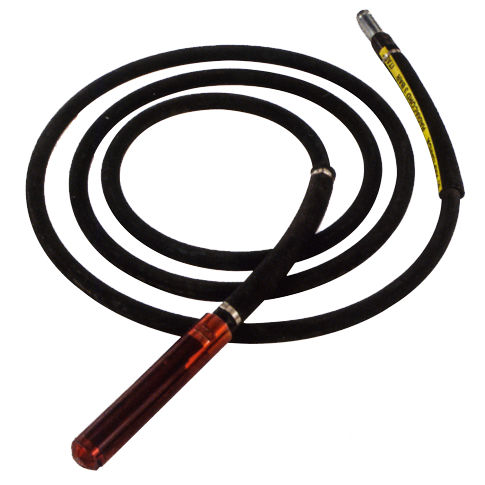

Mechanical concrete internal vibrator FP25

electric concrete

Description
Flexible-shaft immersion vibrator for concrete. Vibration is produced by rotation of an eccentric shaft (non-pendulum), delivering performance comparable to high-frequency vibrators. Driven by an electric motor unit or a petrol engine.

Category

• Vibrators
• Flexible shaft and motor unit

Code (SKU)
PVIBFP25

Specification table
Model: FP25
Model code: PVIBFP25
Vibrator head diameter (mm): 25
Bottle length (mm): 320
Flexible shaft lengths (m): 2.7; 4.0; 6.0
Combustion engine vibration (rpm): 8000
Electric motor vibration (rpm): 12000
Coupling type: hexagonal

Features / Technical specifications

• Model: FP25
• Model code: PVIBFP25
• Vibrator head diameter: 25 mm
• Bottle length: 320 mm
• Available flexible shaft lengths: 2.7 m; 4.0 m; 6.0 m
• Combustion engine vibration: 8000 rpm
• Electric motor vibration: 12000 rpm
• Coupling type: hexagonal
• Drive: electric motor unit or petrol engine
