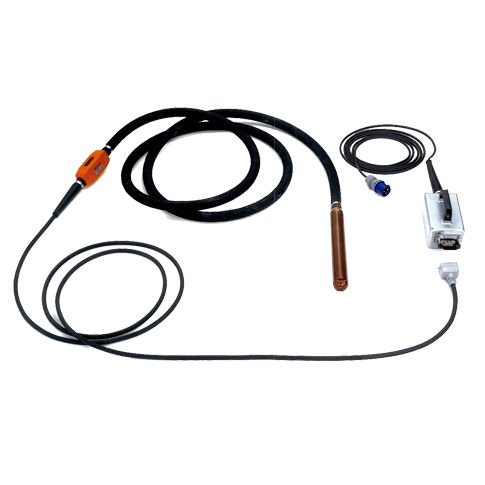

Electric concrete internal vibrator LVT27

Description
High-frequency immersion vibrator for use in fresh concrete. Designed to maintain a constant rotation speed in the concrete. Supplied without a converter and equipped with an interchangeable electronic box. Long lifetime vibrator bottle thanks to hardened steel end caps; end caps are not welded to facilitate repair. Self-lubricating bearings and oil cooling reduce condensation risk. Waterproof hose connection via cable gland.

Technical specifications (table)
Model: LVT27
Model code: PFVLVT27
Bottle diameter mm: 38
Bottle length mm: 315
Voltage Volts: 216
Frequency Hz: 200
Protective rubber hose m: 5
Power cable m: 5 + 10
Vibrations rpm: 12000

Features / technical specifications

• Model: LVT27
• Model code: PFVLVT27
• Bottle diameter: 38 mm
• Bottle length: 315 mm
• Voltage: 216 V
• Frequency: 200 Hz
• Protective rubber hose: 5 m
• Power cable: 5 + 10 m
• Vibrations: 12000 rpm
