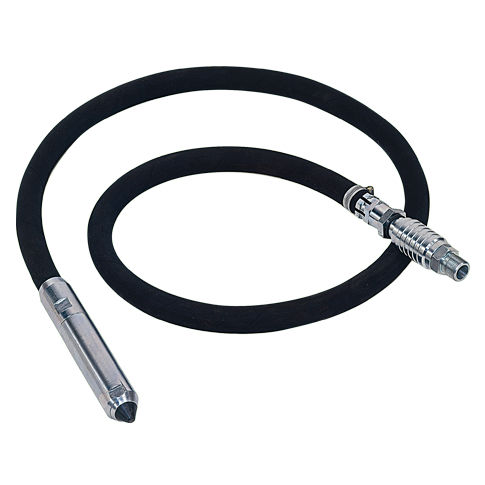

Pneumatic concrete internal vibrator AP38

Description
Pneumatic immersion vibrator designed for concrete consolidation and powered by an external air compressor. Robust construction with wear parts made of abrasion-resistant, heat-treated steel to provide extended service life and reliable operation in construction environments.

Specifications (table)
Model: AP38
Model code: PFVPAP38
Bottle diameter mm: 40
Bottle length mm: 230
Flexible hose length m: 2
Vibrations rpm: 25,000
Connection type: threaded
Air consumption L/min: 500
Max pressure Bar: 6

Features / Technical specifications

• Model: AP38
• Model code: PFVPAP38
• Bottle diameter: 40 mm
• Bottle length: 230 mm
• Flexible hose length: 2 m
• Vibrations: 25,000 rpm
• Connection type: threaded
• Air consumption: 500 L/min
• Maximum pressure: 6 Bar
• Wear parts made of abrasion-resistant, heat-treated steel
