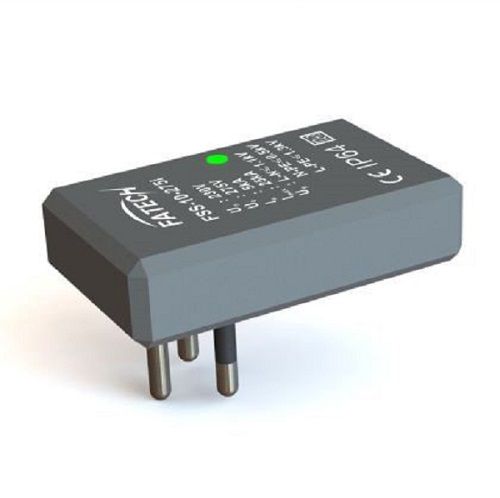

Type 2 surge protector P-SPD/25i-A

type 3for power supplieselectronic equipment

1. Description FATECH New designed small size surge protector,for socket. Suitable for France, Switherland, Thailand, Israel,UK, Italy, Brazil, Turkey, Korea, U.S.A, South Africa. 2. Characteristics 1) New designed small size surge protector for socket. 2) Plug-in with AC power socket by yourself, no need professional for installation. 3) Convenient for bring along with you. 4) Suitable for large business building through small residential house. 5) Low cost, safety application 6) Accordance with IEC61643-11:2011, EN61643-11, DIN VDE0675-69, ANSI/IEEEC62.41.1-2002 7) Switherland, Thailand, Israel, U.K., Italy, Brazil, South Africa plug type is available 3. Electrical Parameters 1) SPD protection conforms to EN 61643-11: Type 2+3 2) SPD installation type conforms to EN 61643-1: Class II+III 3) Protection level conforms to DIN VDE0675-6: C+D 4) Protection mode: L - N , N - PE , L - PE 5) Nominal Voltage 50(60)Hz Un: 230V~ 6) Maximum continuous operating voltage Uc: 264V~400V at current 7100mA, 50Hz 7) Maximum discharge current (8/20μs) Imax: 25kA 8) Nominal discharge current (8/20μs) In: 5kA 9) Open circuit voltage Uoc: 10kV 10) TOVs surge current: >5A in 200mSec, 50Hz 11) Let through voltage (TOVs): <275V at TOVs surge current 12) Recommended back-up fuse: 16AgL/gG 13) Thermal Cut-off Member: Internal 14) Disconnection indicator: Mechanical indicator 15) Degree of protection: IP64 16) Housing material: UL94V-0 17) Ambient temperature: -40°C ~+80°C 18) Permissible humidity: 30%~90% 19) Plug type: Switherland, Thailand, Israel, U.K., Italy, Brazil, South Africa plug type is available
