type 2 surge arrester / type 3 / for power supplies / electronic equipment
PSPD-25i-B

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

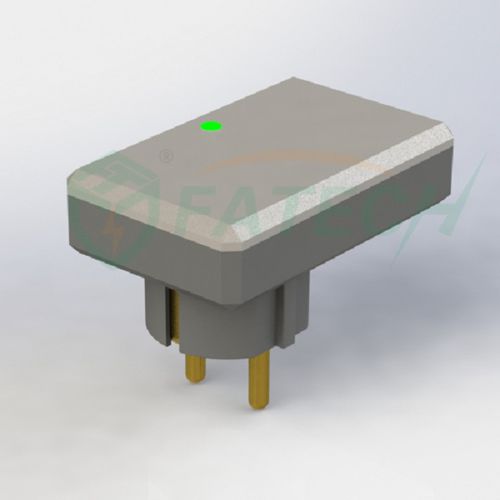

type 2 surge arrester type 2 surge arrester - PSPD-25i-B
{{requestButtons}}

Characteristics

  • Type:

    type 2, type 3

  • Applications:

    for power supplies, electronic equipment

  • Other characteristics:

    with fault indication, N-PE, plug-in, low-voltage, AC

  • Current:

    5,000 A

    Max.: 25,000 A

    Min.: 0 A

  • Voltage:

    230 V

    Max.: 400 V

    Min.: 264 V

Description

1.Description

New designed small size surge protector,for socket. Suitable for France, Switherland, Thailand, Israel,UK, Italy, Brazil, Turkey, Korea, U.S.A, South Africa.

2.Characteristics

1) New designed small size socket surge protector.
2) Plug-in with AC power socket by yourself, no need professional for installation.
3) Convenient for bring along with you.
4) Suitable for large business building through small residential house.
5) Low cost, safety application
6) Accordance with IEC61643-11:2011, EN61643-11, DIN VDE0675-69, ANSI/IEEEC62.41.1-2002
7) European, Germany, Turkey, France, Korea type are available.

3. Electrical Parameters

1) SPD protection conforms to EN 61643-11: Type 2+3

2) SPD installation type conforms to EN 61643-1: Class II+III

3) Protection level conforms to DIN VDE0675-6: C+D

4) Protection mode: L - N , N - PE , L - PE

5) Nominal Voltage 50(60)Hz UN: 230V~

6) Maximum continuous operating voltage UC: 264V~400V at current 7100mA, 50Hz

7) Maximum discharge current (8/20μs) Imax: 25kA

8) Nominal discharge current (8/20μs) In: 5kA

9) Open circuit voltage Uoc: 10kV

10) TOVs surge current: >5A in 200mSec, 50Hz

11) Let through voltage (TOVs): <275V at TOVs surge current

12) Recommended back-up fuse: 16AgL/gG

13) Thermal Cut-off Member: Internal

14) Disconnection indicator: Mechanical indicator

15) Degree of protection: IP64

16) Housing material: UL94V-0

17) Ambient temperature: -40°C ~+80°C

18) Permissible humidity: 30%~90%

19) Plug type: European, Germany, Turkey, France, Korea type are available
