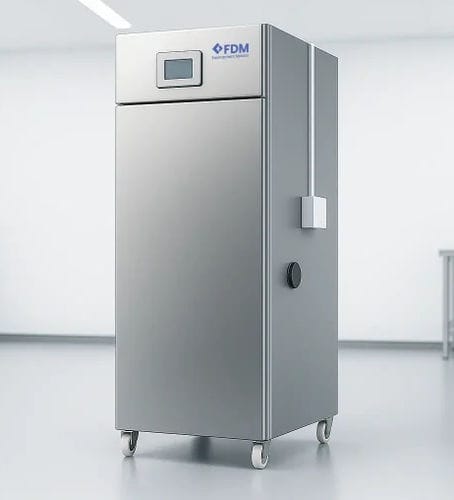

Climate chamber C series

humiditytemperatureCO2

Overview
Precise environmental control with integrated CO₂ concentration management for advanced testing of construction materials, biological samples and plant specimens. Manufactured by FDM (F.lli Della Marca) in Italy, the CB‑CS Series CO₂ Climate Chamber supports carbonation testing, accelerated aging and climate simulation with combined temperature, humidity and CO₂ control.

Standards

• EN 12390-10
• EN 13295
• ISO 1920-12
• ISO 6270-2
• EN ISO 12572

Key features

• Adjustable CO₂ concentration: from ambient (~400 ppm) up to 100% by volume, continuous regulation via PID proportional valve
• High-precision IR CO₂ probe with calibration certificate (example accuracy: ±0.1% @ 5% CO₂)
• Integrated climate control: temperature, humidity and CO₂ in one system
• Standard temperature range: −25°C to +70°C (optionally extendable to +80°C)
• Humidity control range: 10–98 % rH
• Internal volumes configurable: 140 L up to 2300 L
• Forced ventilation for uniform CO₂ distribution and thermo-hygrometric homogeneity
• Two controller options: stillFACE (manual dual display) and revoFACE (programmable touchscreen, cyclic programming)
• Safety features: optional CO₂ inlet block and visual/acoustic alarm if ambient CO₂ exceeds configured threshold
• Documentation & compliance: CE marking, ISO 9001, IQ/OQ documentation and PDF datasheet

Accessories (example options)

• IQ/OQ certification
• Humidity control below 10°C
• Dehumidification down to 2% RH
• Ventilation filter
• Cable pass-through
• Glass door
• Internal electrical socket
• Self-locking swivel wheels
• Water filtration / RO system
• CO₂ regulation / alternative injection systems (N₂ or extraction options)

Controller options

• stillFACE: two dedicated displays for temperature and humidity, manual setpoints, continuous monitoring, configurable audio-visual alarms, optional RS485 — ideal for stability testing and passive monitoring.
• revoFACE: 7" color touchscreen, programmable cycles (up to 10 programs × 50 segments), ramps and transitions, USB data export, event log, RS485/Ethernet and mobile app connectivity — ideal for automated cycles and advanced test sequences.

FAQ highlights (technical)

• CO₂ range: ambient (~400 ppm) up to 100% by volume; regulation via IR probe + PID proportional valve.
• CO₂ reduction: extraction pump or N₂ injection systems available for concentrations below ambient.
• Humidification: RO filtration (continuous purified water with drainage) or 16 L tank (manual refill) — both support 10–98% RH control.
• Concrete testing compliance: meets EN 12390-10, EN 12390-12, EN 13295, ISO 1920-12, ISO 6270-2.
• Operating prerequisites: supply of CO₂ (cylinder or laboratory gas line) with appropriate regulator and inlet pressure conditioning as per installation instructions.

Technical specifications

• Product type: CO₂ Climate Chamber
• Denomination / series: CB‑CS Series
• Available internal volume: 140–2300 L (configurable)
• Temperature range: −25°C / +70°C (extendable to +80°C with accessory)
• Humidity control: 10–98 % rH
• CO₂ concentration control: ambient → 100% by volume
• CO₂ sensor: high-precision IR probe (example accuracy ±0.1% @ 5% CO₂) with calibration certificate
• CO₂ regulation: PID proportional valve (continuous regulation)
• Controllers: revoFACE (programmable touchscreen) or stillFACE (manual / dual display)
• Ventilation: forced distribution for homogeneity
• Standards: EN 12390-10, EN 13295, ISO 1920-12, ISO 6270-2, EN ISO 12572
• Documentation: technical datasheet (PDF), IQ/OQ available
• Marking & certification: CE marking, ISO 9001
• Warranty: 24 months
• Origin: 100% Made in Italy
