Thermostatic test chamber C700B PRO + SPS07

climatichumiditytemperature

Product overview

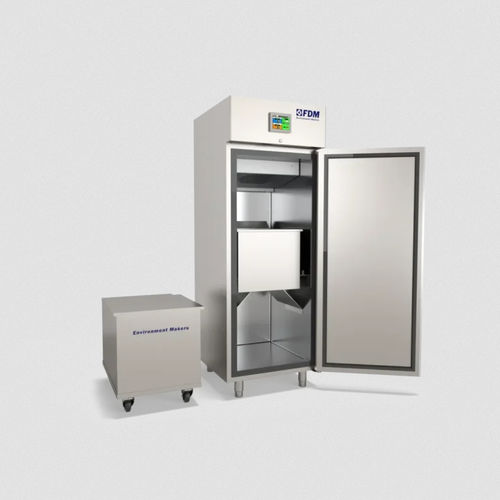

The Concrete Test Chamber (base model C700B PRO + SPS07) is a complete system for cyclic freeze-thaw, durability and strength testing of concrete and building materials with an automatic immersion system. Manufactured by FDM, the chamber integrates precise climate control, an automatic 112 L immersion tank, programmable controllers and continuous monitoring to ensure repeatable, standards-compliant results.

Main features

• Automatic SPS07 immersion/diving system: 112 L stainless steel tank with automatic filling, emptying and pumping for complete immersion cycles.
• Sample capacity: accommodates up to 9 concrete cubes 150×150×150 mm on a perforated stainless steel support for uniform immersion.
• Wide temperature range: −25 °C to +70 °C to simulate extreme climates and perform accelerated testing per EN 12390-9.
• Humidity control: 10 – 98 % rH with an ultrasonic system to simulate saturation and condensation conditions.
• Controller options: revoFACE (color touchscreen, programmable) or stillFACE (dual displays for continuous monitoring).
• Advanced programming: revoFACE supports up to 10 programs × 50 segments (ramps, stasis, transitions) with segment durations from 1 minute to 999 hours.
• Integrated data logging and connectivity: USB export, RS485, Ethernet for event logs, setpoints and traceability.
• Water management: built-in RO purification; optional external demineralized tank and filtration to prevent limescale and ensure repeatable results.
• Accessories and customization: IQ/OQ certification, humidity control below 10 % rH, dehumidification to 2 %, ventilation filter, cable pass-through, glass door, internal socket, self-locking swivel wheels, CO2 regulation, tailored sample holders.
• Standards compliance: EN 12390-9, EN 1367-1, ASTM C666, UNI 7087 for freeze-thaw and durability testing.

Key data
Product Type: Concrete Test Chamber
Base model: C700B PRO + SPS07
Immersion tub: 112 L stainless steel
Sample capacity: 9 cubes 150×150×150 mm
Temperature range: −25 °C / +70 °C
Humidity control: 10 – 98 % rH (ultrasonic)
Controller options: revoFACE touchscreen / stillFACE displays
Programs: 10 programs / 50 segments
Data logging: USB, RS485, Ethernet
Standards: EN 12390-9, EN 1367-1, ASTM C666, UNI 7087

Application and benefits
Engineered for laboratories and industrial test facilities performing freeze-thaw resistance, cyclic immersion/drying and durability assessments on concrete and building materials. The chamber delivers uniform immersion, repeatable environmental conditions, programmable automated cycles and full data traceability to support research, quality control and regulatory compliance.

Characteristics / technical specifications

• Product Type: Concrete Test Chamber
• Denomination (base model): C700B PRO + SPS07
• Immersion tub: 112 L stainless steel
• Sample capacity: 9 cubes 150×150×150 mm
• Temperature range: −25 °C / +70 °C
• Humidity control: 10 – 98 % rH (ultrasonic system)
• Controllers: revoFACE (7" color touchscreen, programmable) or stillFACE (dual displays for T and rH)
• Programming: up to 10 programs × 50 segments (ramps, pauses, transitions)
• Data logging & connectivity: USB, RS485, Ethernet
• Standards: EN 12390-9, EN 1367-1, ASTM C666, UNI 7087
• Materials: stainless steel immersion tank and perforated stainless steel specimen support
• Options/accessories: IQ/OQ certification, dehumidification to 2 %, ventilation filter, cable pass-through, glass door, internal socket, water filtration, CO2 regulation, external demineralized water tank
• Warranty: 24 months
• Origin & certifications: 100% Made in Italy · CE marking · ISO 9001
