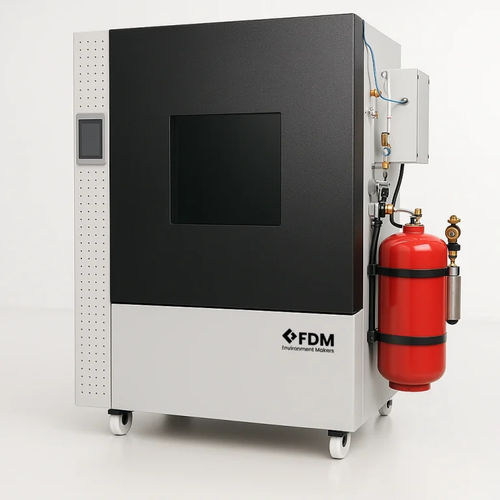

Thermostatic test chamber EUCAR 0-6

climatictemperaturehumidity

Overview
Battery test chamber engineered for safe, repeatable testing of cells, modules and complete battery packs. Configurable to EUCAR risk levels 0–6 and designed to perform thermal abuse, transport simulation (UN 38.3), IEC 62133 / IEC 62660 profiles and UL test requirements. Manufactured by FDM (F.lli Della Marca), Italy.

Standards and regulations

• UN 38.3: Transport qualification for cells and packs — thermal cycles T.1–T.6 (−40 °C to +75 °C), vibration/shock and simulated altitude.
• IEC 62133: Portable cell and battery safety — overload, short-circuit and controlled thermal exposure tests.
• IEC 62660: Lithium cells for electric vehicles — life-cycle tests, performance at extreme temperatures and thermal abuse assessment.
• UL 1642 / UL 2054: Cell and pack safety standards — overtemperature testing, thermal propagation and gas detection requirements.

Key features

• Temperature range: −70 °C to +180 °C for extreme thermal stress and realistic environmental simulations
• Humidity control: 10–98 % rH with independent control to prevent condensation during thermal cycles
• Internal volumes: scalable from 140 to 2300 L to accommodate single cells, modules or full battery packs
• EUCAR compliance: configurable safety and containment systems for levels 0–6
• Integrated gas detection: sensors for H2, CO and other hazardous gases with automatic alarms and emergency logic
• Tailored fire protection: extinguishing and suppression systems specified by battery chemistry and EUCAR level
• Reinforced stainless-steel structure with high-performance insulation and controlled overpressure venting
• Modular accessories: shelves, cable pass-throughs, observation doors and high-efficiency filters available
• IQ/OQ documentation and long-term service contracts available

Controllers

• stillFACE: Dual displays for temperature and humidity; manual setpoints, continuous monitoring, configurable audio-visual alarms and optional RS485 for data logging — suited to stability tests and passive monitoring.
• revoFACE: 7" color touchscreen; programmable cycles (up to 10 programs × 50 segments), ramps/stasis/transitions, USB data export, event log, RS485/Ethernet connectivity and remote monitoring — suited to automated and complex cycle testing.

Accessories (examples)

• IQ/OQ certification package
• Humidity control below 10 °C; dehumidification to 2 % rH
• Ventilation filters and water filtration systems
• Cable pass-throughs with certified gaskets
• Glass observation door and internal electrical socket
• Self-locking swivel wheels
• CO2 regulation system

Applications / Typical configurations

• Single cell — 140–500 L: Localized thermal abuse — targeted monitoring and single-point gas detection.
• Module — 500–1200 L: Thermal propagation between cells — distributed gas detection and multiple sensors.
• Complete battery pack — 1200–2300 L: Large-scale thermal runaway — overpressure venting, tailored fire suppression and external gas evacuation.

Technical notes
Chambers are configurable to match battery chemistry, test protocol and required EUCAR level. Humidity control is independent from temperature cycles to avoid condensation on terminals and connectors. Gas-detection thresholds trigger alarms and can initiate automatic emergency procedures. Full IQ/OQ documentation and detailed datasheets (PDF) are available on request.

Technical specifications

• Product type: Battery Test Chamber
• Internal volume: 140 – 2300 L (configurable)
• Temperature range: −70 °C / +180 °C
• Humidity control: 10 – 98 % rH (programmable/independent)
• EUCAR compliance: levels 0–6 (modular safety systems)
• Controllers: revoFACE (programmable touchscreen), stillFACE (dual-display)
• Gas detection: H2, CO and other hazardous gases with alarm management
• Fire prevention: tailored suppression systems and controlled overpressure venting
• Structure: reinforced stainless steel with high-resistance insulation
• Standards: UN 38.3, IEC 62133, IEC 62660, UL 1642, UL 2054
• Documentation: IQ/OQ available; full technical datasheet (PDF) on request
• Origin: Made in Italy (FDM)
• Warranty: 24 months
