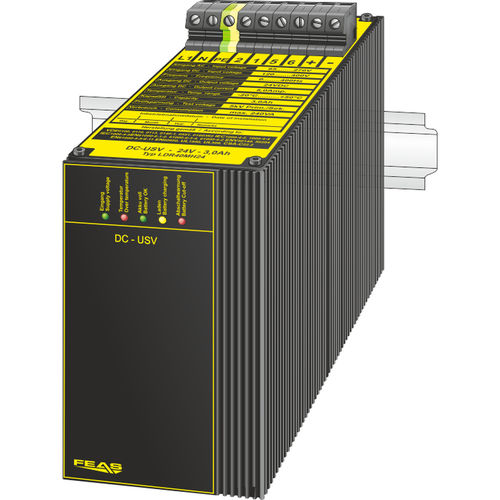

AC buffered power supply LDR40MH24-H

24VDCNi-MHremote monitoring

The LDR40MH24 DC UPS from FEAS is a reliable power supply unit with battery backup for 24-volt systems that protects your critical processes and data against power failures. It automatically switches to battery operation in the event of a power failure, thus protecting against production downtime and high follow-up costs. Reliable emergency power supply: Automatic switchover to battery operation in the event of a power failure Intelligent battery buffering: Optimised charge and discharge management for maximum battery life (Ni-MH batteries) Suitable for industrial use: Robust switching power supply with tropicalised cast resin encapsulation, vibration-resistant Monitoring functions: LED operating indicators, automatic battery test, remote monitoring via relay Mounting on top-hat rail (LDR40MH24-H) or on the wall (LDR40MH24-W) Standard-compliant and safe: short-circuit and reverse polarity protected, safety extra-low voltage PELV, SELV, VDE, EN, UL, CSA Output voltage: 24 V Output current: 4.0 A Capacity: 3.0 Ah Power: 96 watts Efficiency: 89% Residual ripple: < 25 mVSS Operating temperature: -20°C / +50°C Dimensions (WxHxD): 83.0 x 161.0 x 160.5 mm Weight: 3.50 kg
