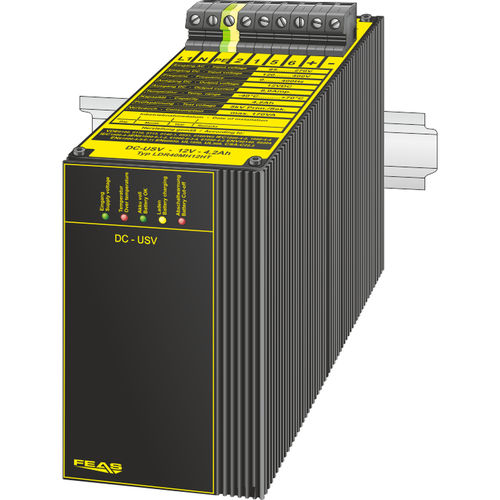

AC buffered power supply LDR40MH12HT-H

12VDChigh-temperature

These FEAS-Accumulator packs with electronic charging regulators are suited to buffer 12 Volt systems. They will ensure the power supply in case of a mains power failure and prevent the loss of your valuable data or the total breakdown of your production line. Regardless of for what you will apply the DC-UPS, you will always have the perfect protection against blackouts, which oftentimes can cause high costs. High Temperature accupack: -20 .... + 70°C Output separated according to VDE 0551 Extra low safety potential PELV (EN 60204), SELV (EN 60950) Overload- and open circuit protected Operating status shown by LED Output protected against polarity reversal Suitable for the tropics - epoxy resin casted Safety acc. to VDE, EN, UL, CSA Input voltage (VAC): - 85-270 VAC (0-400 Hz) Input voltage (VDC): - 120-400 VDC Output voltage: - 9,8 - 13,0 VDC Output current: - 8.0 A Capacity: - 4.2 Ah Power: - 96.0 Watts Efficiency: - 86% Residual ripple: - < 25 mVPP Operating temperature range: - -20°C / +70°C Dimensions (WxHxD): - 83.0 x 161.0 x 160.5 mm Weight: - 3.50 kg Mounting: - On rails acc. to DIN 46277
