DIN rail power supply SNT9348
AC/DCsingle-outputswitching

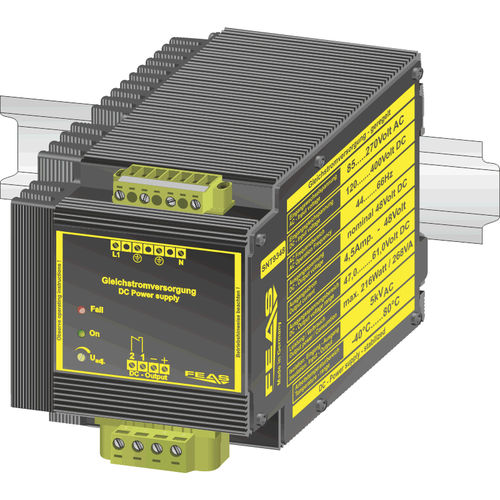

DIN rail power supply - SNT9348 - FEAS GmbH - AC/DC / single-output / switching
DIN rail power supply - SNT9348 - FEAS GmbH - AC/DC / single-output / switching
DIN rail power supply - SNT9348 - FEAS GmbH - AC/DC / single-output / switching - image - 2
Add to favorites
Compare this product
Go to the FEAS GmbH website for more information

Characteristics

Mounting / format
DIN rail
Type
AC/DC
Output
single-output
Technology
switching
Network
single-phase
Protection
with short-circuit protection, with overload protection
Protection class
IP20, IP65
Certifications
CE, UL, IEC
Applications
for industrial applications, rugged
Other characteristics
robust
Input voltage

Max.: 270 V

Min.: 85 V

Output voltage

Max.: 61 V

Min.: 47 V

48 V

Current

4.5 A

Power

216 W

Description

The switch mode power supplies of the SNT93 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 150% of rating, therefore this power supply is suitable for loads requiring high starting current.

Switch mode power supply
Switch-mode controller with low residual ripple
Output adjustable
Boost with 150%
Relay contact for remote monitoring (overtemperature)
Operating status shown by LED
Parallel connection possible
Output protected against polarity reversal
Overload- and open circuit protected
Suitable for the tropics - epoxy resin casted
Output separated according to VDE 0551
Extra low safety potential PELV (EN 60204), SELV (EN 62368)

Efficiency: 90%
Residual ripple: < 50 mVSS
Operating temperature range: -40°C / +70°C
Dimensions (WxHxD): 98.0 x 100.0 x 120.0 mm
Weight: 2.10 kg
