AC/DC power supply GSNT9048
single-outputswitchingsingle-phase

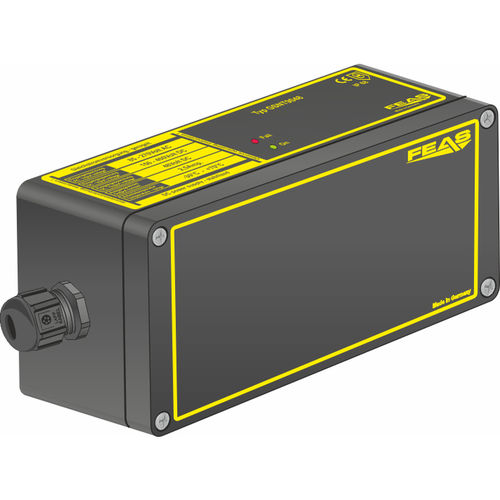

AC/DC power supply - GSNT9048 - FEAS GmbH - single-output / switching / single-phase
AC/DC power supply - GSNT9048 - FEAS GmbH - single-output / switching / single-phase
AC/DC power supply - GSNT9048 - FEAS GmbH - single-output / switching / single-phase - image - 2
Add to favorites
Compare this product
Go to the FEAS GmbH website for more information

Characteristics

Type
AC/DC
Output
single-output
Technology
switching
Network
single-phase
Protection
with short-circuit protection
Protection class
IP68
Certifications
UL
Applications
for industrial applications
Other characteristics
robust
Input voltage

Min.: 85 V

Max.: 270 V

Output voltage

48 V

Min.: 45 V

Max.: 60 V

Current

2.5 A

Power

120 W

Output frequency

0 Hz

Description

The switch mode power supplies of the GSNT90 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 200% of rating, therefore this power supply is suitable for loads requiring high starting current.

Switch mode power supplySwitch mode power supply
Special protected (IP68)
Switch-mode controller with low residual ripple
Output separated according to VDE 0551
Overload- and open circuit protected
Operating status shown by LED
Parallel connection possible
Suitable for the tropics - epoxy resin casted

Efficiency: 89%
Residual ripple: < 50 mVSS
Operating temperature range: -30°C / +70°C
Dimensions (WxHxD): 175.0 x 80.0 x 58.0 mm
Weight: 1.20 kg
