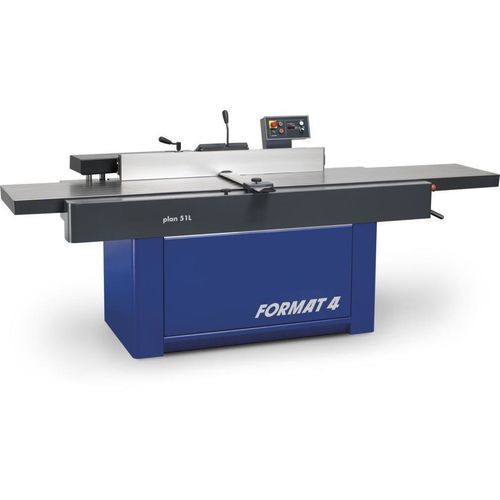

Stationary planer plan 51L

for woodelectric

Overview The Format4 plan 51L is a combined planer-jointer designed for large panel and solid wood processing. It features an extended total table length (up to 3,000 mm in selected configurations) and a tiltable infeed table enabling concave and convex joint finishing for invisible glued joints. The compact guard and foldable fence design allow the machine to be positioned close to a workshop wall without restricting planing width. Power-Drive electrical height adjustment and an ergonomically positioned control panel ensure high operating precision and user comfort.

Key features & highlights

• Silent-POWER® spiral cutterblock option reduces noise and provides tear-free finish with replaceable tungsten-carbide blades.
• Tiltable infeed table for production of concave and convex pieces, enabling invisible joints on glued panels.
• Professional jointer fence with parallelogram adjustment permits machine placement directly against a workshop wall.
• Power-Drive: digital electric height adjustment of the infeed table (standard) for precise, tenth-of-a-millimetre settings; ergonomic control at eye level.
• EURO comfort planing fence: foldable in two places for safety and handling convenience.
• Integrated Format4 planer guard; SUVA guard available as an option for full coverage and automatic lift.
• Standard 4-knife Format-4 cutterblock; TERSA and Silent-POWER spiral cutterblock variants available as options.

Additional machine details

• Total planing table length: up to 3,000 mm (alternate configuration: 2,700 mm).
• Infeed support length examples: 1,650 mm (standard reference) or 1,350 mm in alternative configuration.
• Surface planing width: 512 mm (20⅛”).
• Maximum depth of cut: 8 mm.
• Professional planer fence dimensions: 1,300 x 170 mm; fence tiltable up to 45° with stops at 90° and 45°.
• Tiltable auxiliary fence for safe processing of thin or narrow workpieces.
• Optimized large-dimension extraction hood; extraction connection Ø 140 mm.
• Silent-POWER spiral cutterblock variant with up to 77 knives (if selected).
• Optional power feed mount and other production accessories available.

Technical specifications

• Electrics: standard 3 × 230 V, 60 Hz motor supply; motor options include 7.5 HP (5.5 kW) S6/40% and 10 HP (7.30 kW) S6/40%.
• Star-delta start standard; potential-free contact, timer for operating hours, and CSA-compliant electrical equipment available as options.
• Planer and cutterblock: surface planing width 512 mm; listed total table length references 3,000 mm and 2,700 mm depending on configuration; infeed table lengths 1,650 mm or 1,350 mm depending on choice.
• Power-Drive electrical height adjustment of the infeed table with digital display: standard.
• Concave and convex joint capability: standard.
• Guarding: Format4 integrated guard standard; EURO comfort and SUVA guards optional.
• Cutterblocks: 4-knife Format-4 System standard; 4-knife TERSA and Silent-POWER spiral cutterblock options (silent variant with replaceable tungsten-carbide blades).
• General: extraction connection Ø 140 mm; typical working height approx. 35"; typical weight with average equipment approx. 800 kg (1,760 lbs).
• Packaging: container preparation and IPPC packaging options; palette size example 2,100 × 1,500 mm.
