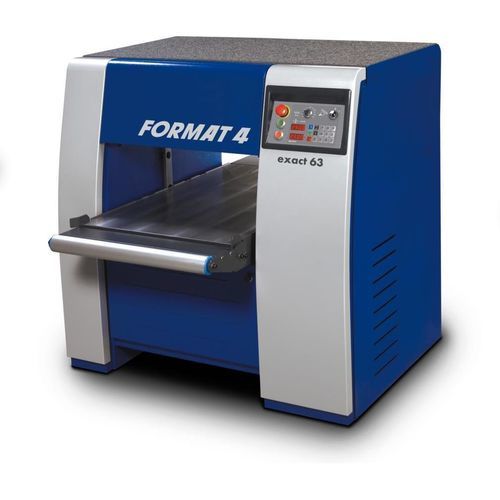

Planer-thicknesser surface planer exact 63

for wood

Product overview
The Format-4 planer exact 63 is a 630 mm (approx. 24.75 in) thicknesser/planer for carpentry, cabinet-making and industrial workshops. It combines a 120 mm diameter cutterblock, selectable cutterhead types and digital table controls to deliver precise, repeatable planing operations.

Cutterblock options

• 4-knife Format System cutterblock
• 4-knife Standard cutterblock for traditional single-sided planer knives
• 4-knife TERSA cutterblock
• Silent-Power® spiral cutterblock

Highlights

• Silent-Power® spiral cutterblock reduces noise emissions, optimises chip extraction and extends blade life.
• Digi-Drive: preset dimension input and start; table moves accurately; LED displays show set and actual values; optional incremental positioning and programmable table positions.
• Variable feed speed (5–20 m/min) as standard for surface finish or fast calibration.
• Power-Drive electrical thicknesser table height control with quick adjustment and LED actual-value display.

Details / Functional features

• Infeed rollers: Float-mounted infeed rollers lift gently for large depths of cut; spring positioning maintains constant pressure for deep cuts.
• Supporting roller: Optional workpiece roller and lubrication unit on the infeed side for wet or resinous wood.
• Adjustable integrated bed rollers: Optional adjustable bed rollers for processing high-resin or high-moisture workpieces.
• Stability and precision: Four trapezoidal spindles ensure exact table adjustment; longitudinal guides in the chassis absorb outfeed pressure and guide the table to a tenth of a millimetre.
• Table extension: Stable extensions with outfeed workpiece roller improve handling comfort.
• Height-adjustable scissor table: Optional 1150 mm height-adjustable scissor table.
• Cast iron bearing seats: Solid cast iron cutterblock housing for heavy-duty use; optional rubber outfeed rollers; pressure beams with rubber or segmented infeed roller allow simultaneous machining of workpieces of different widths.
• 4-knife planing: Format4 System cutterblock with 120 mm knife flight and 4 knives for precise, user-friendly planing.
• Quick blade change: 4-knife cutterblock with rapid knife change and self-aligning knives; enclosed design reduces resin build-up and noise; two-sided knives lower operating costs.
• Silent-Power®: Felder Group spiral cutterblock delivering low noise, extended blade life, four cutting edges per knife and optimised chip extraction.

Technical data (selection)
Electrics: 3x 230 V, 60 Hz; motor power standard 10 HP (7.35 kW) S6/40% — optional 13.5 HP (10.0 kW); star-delta start standard; optional potential-free contact, timer and CSA configuration.

Cutterblock: diameter 120 mm; speed 5000 rpm; 4-knife system, knife length 635 mm; Silent-Power spiral option (95 knives).

Thicknesser and feed drive: planing width 630 mm; table size approx. 630 x 1050 mm; max cutting depth 10 mm; thickness range approx. 3 mm – 300 mm (approx. 1/8 in – 11.75 in); minimum workpiece length 270 mm; variable feed speed 5–20 m/min; electrical thicknesser table height control standard; optional central lubrication and Digi-Drive position control.

General: dust extraction outlet 160 mm; approx. weight 1050 kg.

Specifications

• Model: exact 63
• Planing width: 630 mm
• Cutterblock diameter: 120 mm
• Knife length (4-knife): 635 mm
• Cutterblock speed: 5000 rpm
• Motor power (standard): 10 HP / 7.35 kW — optional 13.5 HP / 10.0 kW
• Feed speed: variable 5–20 m/min
• Max cutting depth: 10 mm
• Thickness range: approx. 3 mm – 300 mm
• Dust extraction outlet: 160 mm
• Approx. weight: 1050 kg
