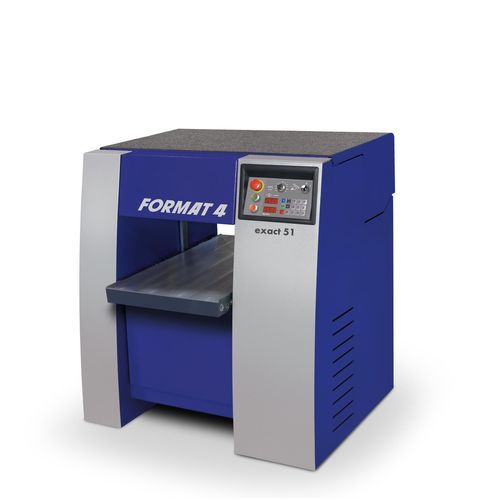

Stationary planer exact 51

for woodelectric

Overview
Precision and operator comfort for industrial thicknessing. The FORMAT4 exact 51 thickness planer is designed for accurate, repeatable planing with a robust cutterblock and wide range of options to adapt the machine to production needs. Standard equipment includes a spring-loaded segmented outfeed pressure bar and variable feed speed; many optional components are available such as segmented infeed roller, rubber-coated rollers and below-table rollers.

Key features & highlights

• Silent-Power® spiral cutterblock (optional): lower noise, extended blade life, tear-free results and improved chip extraction.
• “Digi-Drive”: digital positioning of the table — enter the required dimension and the table moves precisely; LED displays show preset and actual values; incremental positioning and programmable positions optional.
• Variable feed speed (standard): 5–20 m/min to match finish quality or throughput.
• “Power-Drive”: electrical height control with coarse and fine adjustment and LED display for actual values.
• Cast-iron cutterblock housing for heavy-duty operation; optional rubber outfeed rollers and segmented infeed rollers for difficult material conditions.
• Optional adjustable bed rollers for workpieces with high resin or moisture content.
• Stable table extensions with outfeed roller for improved handling of long workpieces.

Silent-Power® advantages (when fitted)

• Significantly quieter operation: noise emissions reduced by more than half.
• Blade life up to twenty times longer than standard knives.
• Four cutting edges per knife.
• Optimised chip extraction and reduced chip volume.
• Tear-free jointing results.
• Lower power consumption compared with similar solutions.

Planer design & operation details
Infeed rollers are float-mounted and lift gently for large cuts; spring positioning ensures constant pressure on the workpiece. Four trapezoidal spindles deliver precise table height adjustment and guarantee high load capacity. Longitudinal guides integrated into the chassis ensure table guidance accuracy to a tenth of a millimeter.

Knife / cutterblock system
The Format4 4-knife cutterblock provides performance, precision and easy knife changes. Self-aligning knives, enclosed housing for quiet operation and reduced resin adhesion on clamping bolts. Optional TERSA-system or Silent-Power® spiral cutterblock available.

Feed
Standard variable feed speed 5–20 m/min (5–65.6 ft/min) to set the correct feed for finish quality or fast thicknessing.

Accessories & options (selection)

• Integrated adjustable bed rollers (optional)
• Segmented or spiral steel infeed rollers, rubber-coated rollers (optional)
• Second outfeed rollers (steel or rubber) (optional)
• Table extension with workpiece roller
• Height-adjustable scissor table (optional)
• Central lubrication for thicknessing table spindles (optional)

Technical specifications

• Brand: FORMAT4
• Model: exact 51
• Cutterblock diameter: 120 mm
• Cutterblock speed: 5000 rpm
• Cutterblock standard: 4-knife Format‑4-System
• Silent-Power® spiral cutterblock: optional (77 knives on spiral cutterblock)
• Thickness planing width: 19⅞" (approx. 505 mm)
• Maximum cutting depth: 10 mm
• Minimum workpiece length: 270 mm
• Feed / variable speed: 5–20 m/min (standard)
• Electrical thicknesser table height control: standard (Power-Drive / Digi-Drive options available)
• Standard motor configuration: 3x 230 V, 60 Hz
• Motor power (examples / options): 7.5 HP (5.5 kW) S6/40% (standard), optional 10 HP (7.30 kW) or 13.5 HP (10 kW)
• Extraction connection diameter: 140 mm
• Weight (with average equipment): approx. 1430 lbs (≈ 649 kg)
