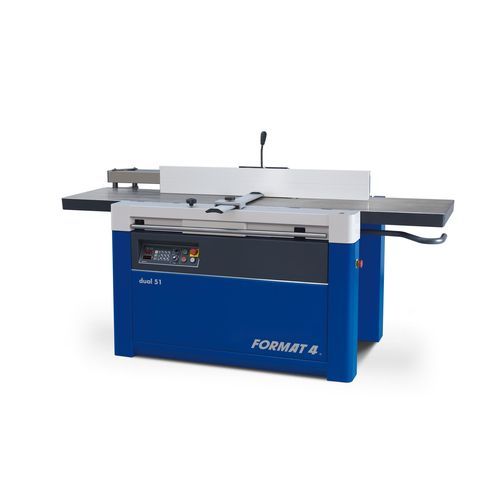

Stationary planer dual 51

for wood4-sidedelectric

Overview
The FORMAT4 dual 51 is a professional jointer-planer designed for precise, repeatable results in workshops and industrial environments. A solid ribbed planing table and a 4-column thicknessing guide ensure high stability and load capacity. The machine features an intuitive changeover concept to switch quickly between jointing and planing, improving productivity and reducing setup time.

Main product highlights

• Intuitive, synchronized opening of the dual planing table for fast changeover
• FORMAT4 parallelogram jointing fence: stable, precise and space-saving (flush position possible next to a wall; tiltable 90°–45°)
• Integrated FORMAT4 planer guard in the chassis for maximum operational safety
• FORMAT4 system cutterblock with reversible knives for long service life and easy blade replacement
• SILENT-POWER® spiral knife cutterblock reduces noise emission by more than half

SILENT-POWER® (spiral knife cutterblock)
The SILENT-POWER® spiral knife cutterblock significantly reduces noise and produces short, compact chips for more effective extraction and fewer dust bag changes. Tungsten carbide spiral inserts provide a constant pulling cut for tear-free planing on all wood types. Individual damaged blades can be replaced quickly, extending usable tool life and lowering operating costs.

Intuitive FORMAT4 changeover concept
The FORMAT4 operating concept minimizes effort when switching between jointing and planing. A synchronized table clamping system enables locking and opening the jointing tables with a simple hand action; industrial springs assist table opening for smooth operation.

Stability & precision
Four trapezoidal spindles deliver precise adjustment and high load capacity for the planing bed. Longitudinal guides integrated in the machine chassis absorb outfeed pressure and guide the table with accuracy to a tenth of a millimetre.

Additional functional features

• Tiltable auxiliary fence for safe planing of thin or narrow workpieces
• Practical FORMAT4 table extensions extend the planing table up to 1000 mm (39⅜") without tools
• Sectional pressure bar available as an option for thin workpieces or varying thicknesses
• Compatible power-feeders to increase safety and ensure symmetrical planing finish

User controls & automation
The dual 51 offers table control options to suit production needs: Power-Drive (electrical) with LED display for precise adjustment, and Digi-Drive (programmable) with numeric keypad for automatic, repeatable table positions and stored incremental settings.

Finish quality
A 120 mm (4¾") cutting diameter combined with the FORMAT4 reversible-knife system ensures excellent jointing quality, a smooth surface finish and long blade life, resulting in low operating costs.

Technical specifications

• Model designation: dual 51
• Brand: FORMAT4
• Cutting diameter: 120 mm (4¾")
• Maximum planing height: up to 254 mm
• Maximum depth of cut: up to 8 mm (3/8")
• Feed speed (variable): 4–16 m/min
• Planing table: solid ribbed working table; table extensions up to 1000 mm (39⅜")
• Thicknessing guidance: 4-column thicknessing table guide system
• Cutterblock: FORMAT4 system cutterblock; option SILENT-POWER® spiral knife cutterblock with tungsten carbide knives
• Adjustment systems: patented jointer adjustment with lateral prismatic guide rails; Power-Drive (electrical) and Digi-Drive (programmable) options
• Fence: FORMAT4 parallelogram jointing fence, tiltable 90°–45°
• Safety: FORMAT4 planer guard integrated into machine chassis
• Accessories/options: tiltable auxiliary fence, sectional pressure bar, power feeder, table extensions
