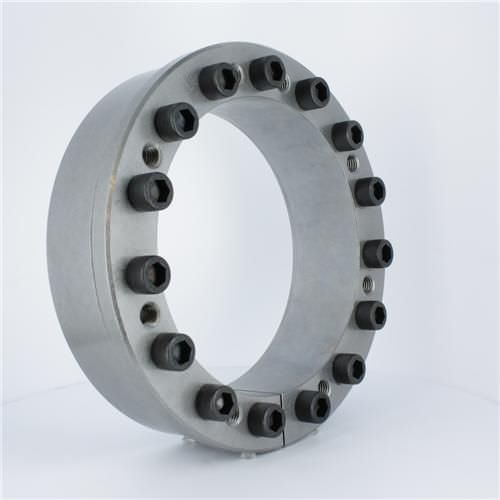

Rigid coupling B-LOC B106 190mm

self-centeringlocking collartransmission

The B-LOC B106 Series 190mm Keyless Bushing provides a high capacity, zero-backlash shaft to hub connection for shafts measuring 190mm in diameter by means of a mechanical interference fit and transmits up to a maximum of 48110 Nm of torque. Best Suited For: Applications where having no axial movement of the mounted component relative to the shaft during tightening is critical and recessed mounting is not important (component mounts against the flange of the bushing). B-LOC B106 Series 190mm Keyless Bushing provides a zero-backlash frictional connection that will never wear or pound out and can accommodate high-torque, thrust, bending, and/or radial loads. Their shallow, single taper design with integrated push-off threads maintains exceptional concentricity and the ability to transmit bending loads. The B-LOC B106 Series Keyless Bushing design eliminates any axial movement during installation making the installation process more precise. This series is also RoHS compliant. • Shallow, single taper design with integrated push-off threads • Exceptional concentricity • Optional integrated spacer sleeve to mount narrow hub components • No axial movement during installation • RoHS compliant
