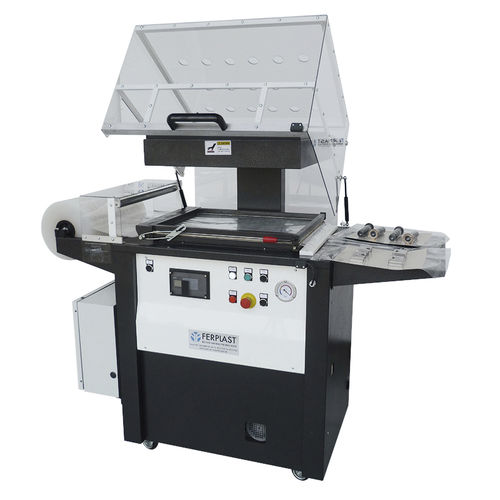

PLC-controlled packaging machine FP 390

semi-automaticmanual feedheat-shrink film

Skinpack semi-automatic cycle packaging machine, for packaging small, medium or large objects, between cardboard and transparent plastic film. The skinpack packaging allows immediate visualization of the product, the possibility of advertising in color and reporting information on the cardboard, the practicality of the packaging which can be hung on the exhibitors. The cardboard support can be replaced with a sheet of bubble wrap (bubble polyethylene). CE standard machine with low voltage controls, electrical panel with Siemens PLC, safety module (Pilz), accident prevention protection on the work area with safety sensor (the downward movement of the frame occurs only with the guard closed, the up is operated by a dual control). The packaging machine mod. FP-390 has limited energy consumption because the resistances are activated only at the time of packaging (on the other Skinpacks the resistances are always on) and there is no risk of overheating. TECHNICAL FEATURES Worktop dimensions: mm. 540x390 Maximum package height: mm. 140 Film reel width: mm. 450 Usable film: Pvc - Surlyn and Pe Installed power: Kw 6 Power supply: 380V three-phase Electrical panel with SIEMENS PLC Accident prevention bell with safety sensors Machine dimensions: mm. 1500 x 600 x 1350 h Machine weight: Kg. 170
