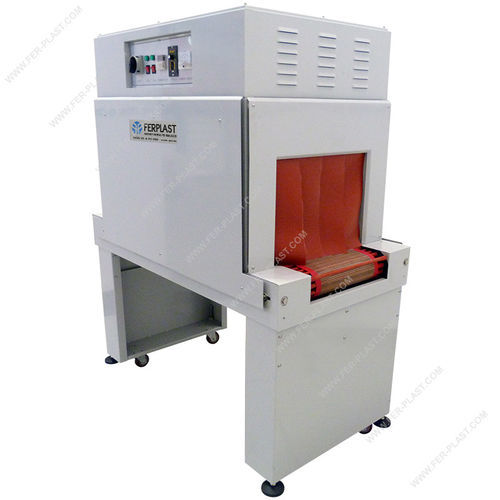

Electric shrink tunnel BS-4535

hot air

The BS series shrink tunnel is designed for all types of shrink films and can be paired with any angular sealer. The tunnel's support surface features a chain conveyor with rollers coated in high-temperature resistant silicone rubber, topped with a Teflon net suitable for small products. Main Features: - Carpet suitable for small products - Stainless steel heating elements for durability and high power - High insulation and effective ventilation for shrinking all film types - Conveyor chains with silicone rubber-coated rollers - Thermoregulator for temperature adjustment from 0 to 200°C - Potentiometer for speed adjustment Technical Data: - Model: BS-4535 - Inlet dimensions: 450 x 350 mm - Tunnel size: 450 x 1000 x 350 h mm - Useful size: 400 x 340 mm - Power supply: 380V, 3-phase - Maximum power: 9 kW - Temperature adjustment: 0-200°C - Conveyor speed: 0-10 m/min - Conveyor capacity: 10 kg - Conveyor height: 800 mm - Machine size: 1300 x 700 x 1550 h mm - Paint: Orange Ral 2004 - Machine weight: 195 kg
