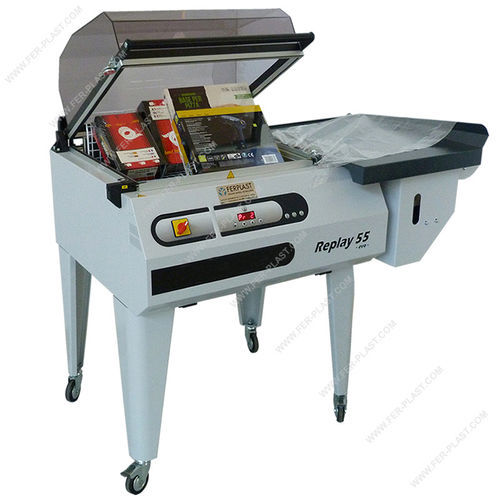

Automatic packaging machine RP series

continuousfilm

HOOD PACKAGING MACHINES SERIES RPNew packaging machine with transparent bell RP series with solid steel structure, the latest generation of electronics, front control interface, intuitive programming, more space in the packaging area, and a whole host of technical features that enhance performance.Features:Innovative bell fixing: easier maintenance and more stabilitySecurity check sealing blades: safer machineSupport with larger diameter (250 mm) suitable for micro-perforated film for bread packagingPackaging plate separated from the roll support: suitable for packaging very small products with the same reel of filmLarger packaging plate for improved retractionInnovative continuous and accurate micro-perforatingNew membrane switch: water-resistant, intuitive graphical independent card3-digit display: clear and complete informationCard with 10 programs: meets all programming needsCounting included: more completeLogin with card: easier maintenance from the frontReticulated plate stretched: protection of the heating elementsPowerful fan motor: higher shrinking performanceNew strength die-cast aluminum with innovative geometry: higher heat exchange, higher efficiency, higher speed of retractionExtra safety thermostat directly on the heating elements: greater safetyProfile rubber-holder in neoprene with total absence of glue: easy replacement, no adhesives requiredThree models are available with a support surface of 400x250x200h mm, 520x390x250h mm, and 780x580x250h mm. The dimensions of the support surface are considered with the hood closed. The volume cannot be completely filled by the box or product to be packaged, as space must always be left for the passage of hot air around the product.The choice of the machine must take into account that:The dimensions of the box (height + depth) must not exceed the maximum width of the reel mounted on the machine (depending on the model), also considering that there must always be at least 50 mm of waste.To work continuously, quickly, and smoothly, around the product it is necessary to consider about 5 cm of "free air" to facilitate thermo-retraction.If the product to be packaged takes up too much volume, thermo-shrinking is not carried out correctly and the film could get punctured.To confirm that the machine is suitable, we always advise you to contact us and report the measurements of the boxes to be packaged.MODELRP 40RP 55RP 85Sealing bars dimensions420x280 mm550x420 mm590x840 mmHood internal volume400x250x200h mm520x390x250h mm780x580x250h mmAlimentation220V220V380VPower2.6 kW3.15 kW5.3 kWMax reels width500 mm600 mm800 mmUsable materialsPVC – PPLPVC – PPLPVC – PPLMax production/h200-300200-300200-300Machine dimensions1160x700x1120 mm1260x810x1180 mm1950x1000x1280 mmMachine weight75 Kg90 Kg215 KgUpon request when ordering, the stainless steel packaging plate can be purchased as an accessory for all models. For more information, please contact us.Operation:The operator must place the product in the film, drag it into the welding zone, and lower the bell. The welding and shrinking operations occur simultaneously.OPTIONALS:Fume extractor with activated carbon filter (for RP 55)Motorized device for waste wrapping (for RP 40/55 and RP 85)Surcharge for raised bell h. 300 mm for bulky products (for RP 85)Air jet to facilitate product insertion (for RP 40/55 and RP 85)Increase for increased support for reel with max. width 1000 mm (for RP 85)USABLE MATERIALSThe machines sealers for packaging with shrink film use single folded film. They are double film reels, with the front side open for the insertion of the products. The thickness is limited (from 19 to 30 my) to facilitate heat shrinking even in smaller chambers. The length of the coils depends on the thickness of the material.The main materials used are:PVC: suitable for packaging of technical products. Retracts at "low" temperaturePOLYOLEFINS: suitable for technical products and foodCRYO THERMO: transparent and professional, suitable for contact with food. Best qualityCHOOSING THE RANGE FILMChoosing the proper width of the film is essential to be able to pack products without wasting material.To choose the size of the folded film, verify the actual size of the box or product to be packaged and calculate the perimeter of the smaller side.Example: if you have a box measuring 30cm x 20cm x H10 cm, you are going to insert the box in the machine on the 30cm side. If you look in front, you will see the 20x10 cm side.The coil is centrefold. So you have to calculate half the perimeter (5+20+5 cm) and add at least 5 cm. This extra 5 cm will become scrap, but is needed to ensure the perfect sealing of the box.Technical Specifications:Three models: RP 40, RP 55, RP 85Sealing bars: 420x280 mm, 550x420 mm, 590x840 mmHood internal volume: 400x250x200h mm, 520x390x250h mm, 780x580x250h mmPower supply: 220V (RP 40/55), 380V (RP 85)Power: 2.6 kW (RP 40), 3.15 kW (RP 55), 5.3 kW (RP 85)Max reels width: 500 mm (RP 40), 600 mm (RP 55), 800 mm (RP 85)Usable materials: PVC, PPLMax production: 200-300 pcs/hMachine dimensions: 1160x700x1120 mm (RP 40), 1260x810x1180 mm (RP 55), 1950x1000x1280 mm (RP 85)Machine weight: 75 Kg (RP 40), 90 Kg (RP 55), 215 Kg (RP 85)
