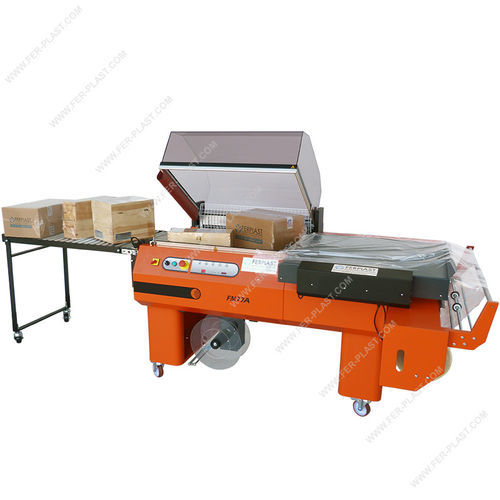

Automatic packaging machine FME series

manualfilmfor cardboard boxes

AUTOMATIC PACKAGING MACHINE FME New packaging machines with motorized sealing - FME 76-77A. The FME 76-77A packaging machines replace and improve the models of the FC AUTOMATIC series. Thanks to the automatic cycle, it is possible to work in a "paced" manner by programming the necessary pause time to insert/prepare the products before a new packaging cycle. It is also possible to work in manual cycle, performing one packaging at a time by pressing the start button. The FME 76-77A packaging machines are equipped with a cooling system for the bars for better sealing. - Manual or automatic work cycle - Motorized bell and product expulsion belt - Front control interface with intuitive programming - Cooling of the sealing bars for better joint sealing - New upper bell fixation requiring less maintenance - Sealing blade safety control: increased machine safety - Support with increased coil diameter of 250 or 300 mm - Independent packaging plate from the coil support: suitable for packaging even very small products with the same film coil - New microperforator - Double display: 2 digits for programs and settings and 4 digits for piece counter - Digital control panel with 6 storable programs - Piece counter included - Entry door for card access - Elongated mesh plate - Improved fan motor for more retraction power - Additional safety thermostat on the thermal buffer resistance - Neoprene hose holder profile - Bell safety system for the operator The dimensions of the support surface are 500x380x200 mm h or 800x500x200 mm (height of the closed hood) depending on the model. The volume cannot be completely filled by the box or the product to be packaged as there must always be space around the product for the passage of hot air. The choice of machine must take into account that: - the dimensions of the box (height + depth) must not exceed the width of the coil considering also that there must always be at least 50 mm of waste. - to work continuously, quickly and smoothly, about 5 cm of "free air" around the product must be provided to facilitate heat shrinkage If the product to be packaged occupies too much volume, heat shrinkage does not occur correctly and the film may perforate. To confirm that the machine is suitable, it is advisable to contact the manufacturer and provide the measurements of the boxes to be packaged. MODEL FME 76A FME 77A Power supply 230V 50/60Hz 1Ph 230V 50/60Hz 1Ph Maximum power 3.4 kW 7.5 kW Maximum current 15 A 21 A Hourly production 0-700 0-400 Useful dimensions of sealing bars 540x390 mm 840x590 mm Maximum coil dimensions Ø250x600 mm Ø300x800 mm Internal volume of the bell 500x380x200 mm (15kg max) 800x500x200 mm Working height 925 mm 940 mm Machine dimensions (open cover) 1930x810x1310 mm 3120x1000x1480 mm Machine dimensions (closed cover) 1930x810x1165 mm 3120x1000x1180 mm Machine weight (net/gross) 174/198 kg 286/338 kg Machine color RAL2004 textured RAL2004 textured Packaging plate color RAL7016 textured RAL7016 textured MATERIALS USED The machines for shrink film packaging use mono-folded film. These double film coils have the front side open for product insertion. The thickness is limited (19 to 30 µm) to facilitate heat even in small bells. The length of the coils depends on the thickness of the material. The main materials used are: - PVC: suitable for packaging technical products. Shrinks at "low" temperature - Polyolefins: suitable for technical and food products - CRYO THERMO: transparent and professional. Superior quality CHOOSING THE FILM RANGE Choosing the correct film width is essential to package products without material waste. To choose the size of the folded sheet, you must check the actual size of the box or product to be packaged and calculate the perimeter of the bottom face. Example: if you have a box measuring 30cm x 20cm x H 10 cm, place the box on the long side of 30 cm, and, looking at the front, you will have the side of 20x10 cm. The coil is center-folded. You must then calculate half the perimeter (5 + 20 + 5 cm) and add at least 5 cm. These will be waste but serve to ensure a good film seal. Characteristics / Technical specifications: - Work cycle: manual or automatic - Motorized bell - Product expulsion belt - Sealing bar cooling - Front control interface - Coil support 250/300 mm - Independent packaging plate - Microperforator - Double display (programs/settings and piece counter) - Digital control panel (6 storable programs) - Piece counter - Card entry door - Elongated mesh plate - Improved fan motor - Additional safety thermostat - Neoprene hose holder profile - Bell safety system - Support surface dimensions: 500x380x200 mm or 800x500x200 mm - Machine weight: 174/198 kg (FME 76A), 286/338 kg (FME 77A)
