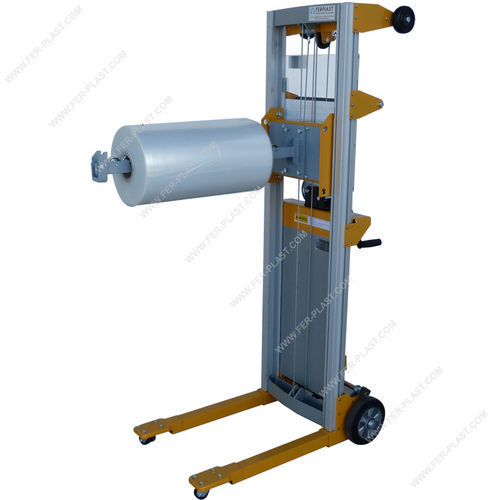

Automatic elevator W181 B

WINCH LIFTER FOR COILS WITH INTERCHANGEABLE ACCESSORIESPractical and functional, it allows you to lift reels up to 150 kg to a maximum height of 2600 mm if equipped with accessories (fixed pin, V-shaped table, roller shaft, etc.). If equipped with forks and table, it allows you to lift 180 kg up to a height of 2450 mm.The exclusive crank winch allows you to lift the load with minimum effort and, through the built-in automatic clutch, you can block the ascent at any point in the lift. The load can only descend if the operator intentionally acts on the winch and causes it to gradually descend.Equipped with a stranded rope with a textile core, horizontal push handles, pedal parking brake system, aluminum structure and oven-dried epoxy powder coating.The lift can be equipped with various accessories for lifting and transporting reels.Technical characteristicsMOD. W181 B for coilsMaximum rangeKg. 180Dimensionsmm. 630 (D) x 880 (C) x 1720 h.(A)Pin height (min/max)mm. 90 - 2450 (B/B1)Mast heightmm. 1720 - 3000Clearancemm. 1120Rear wheelsRubberFront wheelsNylonFront supports widthmm. 620Total media widthmm. 510Internal distance of supportsmm. 340Height of supports from the groundmm. 85Weightkg. 70OPTIONAL ACCESSORIESACC-PB fixed reel holder L600: Reel holder shaft with diameter mm. 50 and length mm. 600, allows the grip and horizontal transport of reels with a maximum width of mm. 600 and a maximum weight of 100 Kg.ACC-PB60-2 fixed reel holder: Reel holder shaft with diameter mm. 76 and length mm. 600, allows the grip and horizontal transport of reels with a maximum width of mm. 600 and a maximum weight of 150 Kg.ACC-PB10 reel holder pin with increased elongated supports: Fixed reel holder shaft with length 1000 mm and capacity 50 Kg allows the grip and horizontal transport of reels + increased elongated supports to avoid the frontal overturning of the elevator.ACC-WP-A02 reel holder shaft with wheels: Ideal for the horizontal transport of reels with a maximum width mm. 500, min. internal diameter mm. 76, max. external diameter mm. 500 - maximum weight 150 Kg.ACC-WP-A02-2 Roller reel holder shaft with safety lock, length mm. 600 and diameter mm. 70: Ideal for horizontal transport of reels with maximum width mm. 500, min. internal diameter mm. 76, max. external diameter mm. 500 - maximum weight 100 Kg.ACC-WP-A03 for lifting and rotating reels: Allows gripping via a shaft and expansion with a manual handwheel and subsequent horizontal/vertical rotation via a release lever. Warning: using this accessory the lifting height is reduced by 200 mm.ACC-FP forks with flat surface: Optional forks with nylon loading flat surface, capacity 180 Kg, maximum lifting height 2450 mm.Reel compatibility:- Internal diameter mm. 76- External diameter max. mm. 500- Maximum width mm. 600- Maximum weight Kg. 60Technical Specifications / FeaturesMaximum load: 180 kgMaximum lifting height: 2600 mm (with pin), 2450 mm (with forks and table)Dimensions: 630 x 880 x 1720 mmMast height: 1720 - 3000 mmClearance: 1120 mmRear wheels: RubberFront wheels: NylonFront supports width: 620 mmTotal media width: 510 mmInternal distance of supports: 340 mmHeight of supports from ground: 85 mmWeight: 70 kgAluminum structure with oven-dried epoxy powder coatingPedal parking brake systemHorizontal push handlesStranded rope with textile coreAutomatic clutch for ascent blocking
