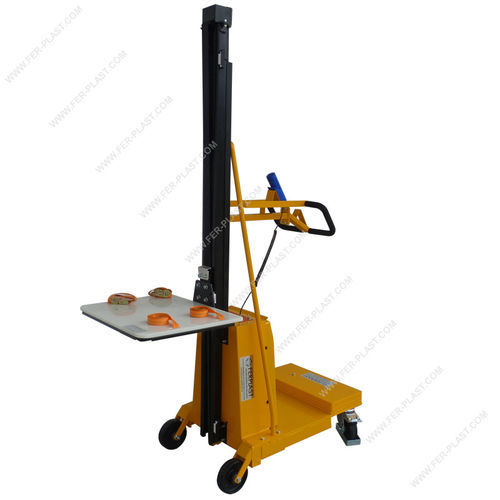

Electric elevator FPE 250 H-LEO

platform

Battery-powered elevator with nylon platform equipped with two ratchet fastening straps to safely transport packages and boxes, even stacked. Platform dimensions: 470x610 mm. Practical and handy with manual traction and electric lifting, model FPE 250 H-LEO allows lifting loads with a maximum weight of 100 kg up to a height of 1800 mm. The reduced dimensions and limited weight allow its use in warehouses, laboratories, offices, kitchens, shops, etc. The 24 V-20 Ah battery, maintenance-free, combined with the robust motor and control electronics with overload protection ensures safe and reliable operation. The charger is integrated. - To ensure maximum safety, the lifting system is equipped with a fall-arrest belt. - The counterbalanced model allows you to get as close as possible to the pallet in total safety and facilitates the loading of the material. Technical Specifications: - Model: FPE 250 H LEO - Load capacity: 100 kg - Maximum lifting height: 1800 mm - Minimum platform height: 130 mm - Platform size: 470 x 600 mm - Distance between supports: 460 mm - Lifting speed: approx. 28 sec to 1800 mm (65 mm/sec) - Machine dimensions: 860 x 600 x 2100 mm (h) - Front wheels diameter: 150 mm - Steering wheels diameter: 150 mm - Weight: approx. 180 kg - Battery: 24 V – 20 Ah (maintenance-free) - Integrated charger - Fall-arrest belt for safety - Manual traction, electric lifting - Counterbalanced design for close approach to pallets - Accessories: Lithium battery kit, ESD wheels kit
